Command Stations & Boosters
With CabControl, we combine the ease of use of our popular MobileControl Pro handheld controller with the Integrated Control Unit (ICU) base station, which incorporates a powerful booster, a high-quality DCC command station with RailCom® and RailComPlus®, and a complete Wi-Fi access point.
Model As a multi-protocol controller with its high-resolution, modern colour touchscreen, its 2 throttles, and its integrated central track diagram control panel, the Central Station 3 offers the possibility of controlling the locomotives and the entire layout simply and conveniently. Up to 32 functions can be controlled on locomotives; with accessory items up to 320 Motorola or 2048 DCC solenoid accessories are possible. The Central Station 3 also has 2 built-in locomotive card readers (for storing the locomotive data on a locomotive card or for quickly calling up the locomotive by inserting the locomotive card), an SD card slot for expanding the memory, and an integrated speaker for playing sounds typical of model railways. A powerful Booster is integrated to supply the layout with power for running and switching. The Central Station 3 can be used with several units, i.e. with the optional cable (60123) additional Central Station 3 plus units (60216), each with a network connection, can be operated together on one layout. Additional driver's desks, other layouts, and keyboards extend the operation of the layout, whereby shared and separate configurations for the layout areas to be controlled can be held in the Central Station 3 (plus). The Central Station 3 has 2 built-in USB hosts (for a mouse, keyboard, or USB stick, for example), a USB charging socket, a network connection for communicating with a PC, connections for 2 Mobile Stations, a connection for external speakers, and others for the Märklin bus system. S88 connections can be provided externally by means of the Link s88 (60883). Load capacity at the feeder track: max. 5 A, load capacity at the programming track: max. 1.2 A. Max. outputs: - 5.0 A when using a Märklin 100W switched-mode power supply, exclusively with Gauge 1 and LGB. - 3.0 A when using a Märklin 60W/50W switched-mode power supply with H0 and N gauge. The Central Station 3 is to be used only in conjunction with MÄRKLIN switched-mode power supplies. It is not compatible with MÄRKLIN transformers. Please be sure to note that the cable cross-section must be greater than 0.5 mm²! A switched-mode power supply is not included in the contents supplied. Dimensions 320 x 195 x 80 mm. Highlights Digital multi-protocol controller (mfx, mfx+, DCC, Motorola) High-resolution, modern colour touchscreen Integrated, central track diagram control panel Housing with a central stop button and 2 rotary controllers in robust industrial quality Up to 32 controllable locomotive functions. 2 built-in locomotive card readers Integrated speaker Built-in SD card slot Integrated powerful Booster Output: 3.0 A when using a Märklin 60W/50W switched-mode power supply with H0 and N gauge. Output: 5.0 A when using a Märklin 100W switched-mode power supply exclusively with Gauge 1 and LGB. Up to 320 Motorola and 2048 DCC solenoid accessories can be controlled Route control (incl. shuttle train control). 2 USB hosts for a mouse, keyboard, USB stick, etc. and 1 USB charging socket Direct connection for 2 Mobile Stations and one bus expansion unit Connections for a network, external speakers, and the Märklin bus, for example Expansions can be connected by means of the Märklin bus You can find further technical information => in our instructions. You can find free information and updates here
Model As a multi-protocol control unit, the Central Station 3 offers the possibility of simple and comfortable control of the locomotives and of the entire layout with its high-resolution, modern colour touchscreen, its 2 controllers as well as its integrated central track diagram control panel. Up to 32 functions can be controlled on locomotives; with accessories, up to 320 Motorola or 2048 DCC solenoid accessories are possible. The Central Station 3 also has 2 built-in locomotive card readers (for storing the locomotive data on a locomotive card or for quickly calling up the locomotive by inserting the locomotive card), an SD card slot for memory expansion as well as an integrated loudspeaker for playing sounds typical of model railways. A powerful booster is integrated to supply the layout with power for running and switching. The Central Station 3 is capable of multi-unit working, i.e. with the optional cable (60123) additional Central Station 3 plus units (60216), each with its own network connection, can be operated together on one layout. Additional driver's desks, further layouts and keyboards extend the operation of the layout, whereby common and separate configurations for the layout areas to be controlled can be held in the Central Station 3 (plus). The Central Station 3 has 2 built-in USB hosts (for a mouse, keyboard or USB stick, for example), a USB charging socket, a network connection for communication with a PC, connections for 2 Mobile Stations, a connection for external loudspeakers as well as further ones for the Märklin bus system. S88 connections can be implemented externally by means of the Link s88 (60883). Load capacity at the feeder track: max. 5 A, load capacity at the programming track: max. 1.2 A. The Central Station 3 is only to be used in conjunction with the 60061 switched-mode power supply (60101 for Gauge 1 and L51095 for LGB) (not with transformers such as the 60052). When the 60061 switched-mode power supply is used, this gives a maximum output of 58 VA and a maximum current of 3 A (with the 60216 and the 60101/L51095 switched-mode power supply this gives a maximum current of 5 A, recommended exclusively for Gauge 1/LGB. Please be sure to observe a cable cross-section greater than 0.5 mm²!). Dimensions 320 x 195 x 80 mm. You can find more information and a note on availability for this Märklin item in the product database at www.maerklin.de Highlights Digital multi-protocol control unit (mfx, mfx+, DCC, Motorola) High-resolution, modern colour touchscreen Integrated, central track diagram control panel Housing with a central stop button and 2 rotary controls in robust industrial quality Up to 32 controllable locomotive functions. 2 built-in locomotive card readers Integrated loudspeaker Built-in SD card slot Integrated powerful booster. 5.0 A max. output when using the 60101/L51095 switched-mode power supply (recommended for Gauge 1 or LGB). Up to 320 Motorola and 2048 DCC solenoid accessories can be controlled Route control (incl. shuttle train control). 2 USB hosts for a mouse, keyboard, USB stick, etc. and 1 USB charging socket Direct connection for 2 Mobile Stations and one bus expansion unit Connections for a network, external loudspeakers or the Märklin bus, for example Expansions can be connected by means of the Märklin bus
Prototype As a multi-protocol controller with its high-resolution, modern colour touchscreen, its two throttles, and its integrated central track diagram control panel, the Central Station 3 plus offers the possibility of controlling the locomotives and the entire layout simply and conveniently. The Central Station 3 plus is to be used only in conjunction with MÄRKLIN switched-mode power supplies. It is not compatible with MÄRKLIN transformers. A switched-mode power supply is not included in the contents supplied. Model As a multi-protocol controller with its high-resolution, modern colour touchscreen, its 2 throttles, and its integrated central track diagram control panel, the Central Station 3 plus offers the possibility of controlling the locomotives and the entire layout simply and conveniently. Up to 32 functions can be controlled on locomotives; with accessory items up to 320 Motorola or 2048 DCC solenoid accessories are possible. The Central Station 3 plus also has 2 built-in locomotive card readers (for storing the locomotive data on a locomotive card or for quickly calling up the locomotive by inserting the locomotive card), an SD card slot for expanding the memory, and an integrated speaker for playing sounds typical of model railways. A powerful Booster is integrated to supply the layout with power for running and switching. The Central Station 3 plus can be used with several units, i.e. with the optional cable (60123) several Central Station 3 plus units (60216), each with a network connection, can be operated together on one layout. Additional driver's desks, other layouts, and keyboards extend the operation of the layout, whereby shared and separate configurations for the layout areas to be controlled can be held in the Central Station 3 plus. The Central Station 3 plus has an integrated s88 connection, 2 built-in USB hosts (for a mouse, keyboard, or USB stick, for example), a USB charging socket, a network connection for communicating with a PC, connections for 2 Mobile Stations, a connection for external speakers, and others for the Märklin bus system. Load capacity at the feeder track: max. 5 A, load capacity at the programming track: max. 1.2 A. Max. outputs: - 5.0 A when using a Märklin 100W switched-mode power supply, exclusively with Gauge 1 and LGB. - 3.0 A when using a Märklin 60W/50W switched-mode power supply with H0 and N gauge. The Central Station 3 plus is to be used only in conjunction with MÄRKLIN switched-mode power supplies. It is not compatible with MÄRKLIN transformers. Please be sure to note that the cable cross-section must be greater than 0.5 mm². A switched-mode power supply is not included in the contents supplied. Dimensions 320 x 195 x 80 mm. Highlights Digital multi-protocol controller (mfx, mfx+, DCC, Motorola) High-resolution, modern colour touchscreen Integrated, central track diagram control panel Housing with a central stop button and 2 rotary controllers in robust industrial quality Up to 32 controllable locomotive functions. 2 built-in locomotive card readers Integrated speaker Built-in SD card slot Integrated powerful Booster Output: 3.0 A when using a Märklin 60W/50W switched-mode power supply with H0 and N gauge. Output: 5.0 A when using a Märklin 100W switched-mode power supply exclusively with Gauge 1 and LGB. Up to 320 Motorola and 2048 DCC solenoid accessories can be controlled Route control (incl. shuttle train control). 2 USB hosts for a mouse, keyboard, USB stick, etc. and 1 USB charging socket Direct connection for 2 Mobile Stations and one bus expansion unit Integrated s88 connection Connections for a network, external speakers, and the Märklin bus, for example Expansions can be connected by means of the Märklin bus Can be used with several units with the Central Station 3 plus You can find further technical information => in our instructions. You can find free information and updates here
Connect-6021 for the bidirectional connection of the former Märklin Digital System to the Central Station 60213-60215 and 60216/60226. It offers the possibility of controlling 80 locomotives (motorola as well as mfx) with the Control Unit 6021, of switching locomotive functions (function, F1 – F4), and of switching solenoid accessories with a synchronous display of their position. The memory 6043 can be used, as can the memory functionality of the Central Station 60213-60215 and 60216/60226. Connections on the back: M-Bus cable (for connection to 60213-60215 and 60216/60226). Side connection: plug strip for connection to the "6021 world". Dimensions 135 x 120 x 80 mm.
Model For switching 4 twin-coil solenoid accessories such as points and signals or up to 8 uncoupler tracks. The position set is indicated by the position of the respective buttons. With 8 sockets on the back and 2 on the side. All of the connections are for the new plugs from the 71400 set. 8 matching plugs are included. Dimensions 80 x 40 mm. Highlights All of the connections with new plug connections. Matching plugs are included Function corresponds to the 7272 unit
Model For switching 4 twin-coil solenoid accessories such as points and signals or up to 8 uncoupler tracks. The position set is indicated by the position of the respective buttons. With 8 sockets on the back and 2 on the side. All connections for the new plugs from the 71400 set. 8 matching plugs are included. Dimensions 80 x 40 mm Highlights All connections with the new plug connections. Matching plugs are included The function corresponds to the 7272 device
Model For switching 4 twin-coil solenoid accessories with end shutoff. Automatic feedback of the position by means of LEDs when using the 75491 (K) or 74491 (C) point motors as well as the Minitrix 14934 and 14935 point motors. With 8 sockets on the back and 2 on the side. All connections for the new plugs from the 71400 set. 8 matching plugs are included. Dimensions 80 x 40 mm Highlights All connections with the new plug connections. Matching plugs are included The function corresponds to the 7271 device
Model For switching 4 twin-coil solenoid accessories with automatic cutoff. Automatic feedback of the position by means of LEDs when using the 75491 (K) or 74491 (C) point motors as well as the Minitrix 14934 and 14935 point motors. With 8 sockets on the back and 2 on the side. All of the connections are for the new plugs from the 71400 set. 8 matching plugs are included. Dimensions 80 x 40 mm. Highlights All of the connections with new plug connections. Matching plugs are included Function corresponds to the 7271 unit
You will find more information and availability details on this Märklin item in the product database at www.maerklin.de
You can find more information and a note on availability for this Märklin item in the product database at www.maerklin.de
More information and availability details for this Märklin item can be found in the product database at www.maerklin.de

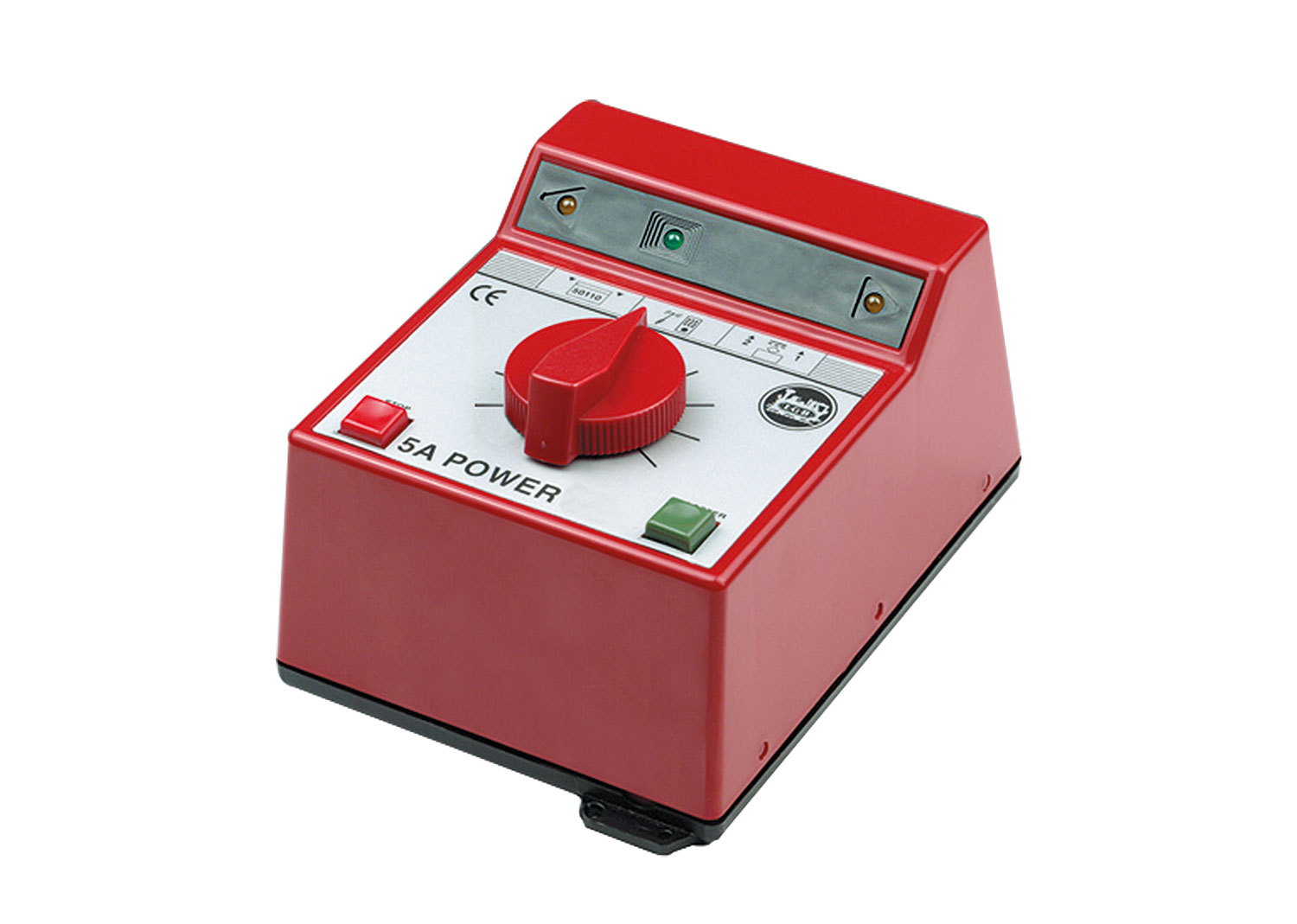

This electronic controller for analogue operation offers state-of-the-art technology with high traction current and modern features for your analogue LGB layout: max. 5 A traction current, for use with the 51095 switched-mode power supply. Very sensitive control and smoothed DC voltage. Adjustable control range: +/- 135° with a zero position in the centre / booster button with programmable acceleration, stop/halt button. LED indicators for stop, overload, ready for operation, and direction of travel. Terminals for cables with a cross-section of up to 1.5 mm2, protection against short circuits. Output: 0-24 V DC voltage. Traction current: max. 5 A. Dimensions 160 x 120 x 95 mm.

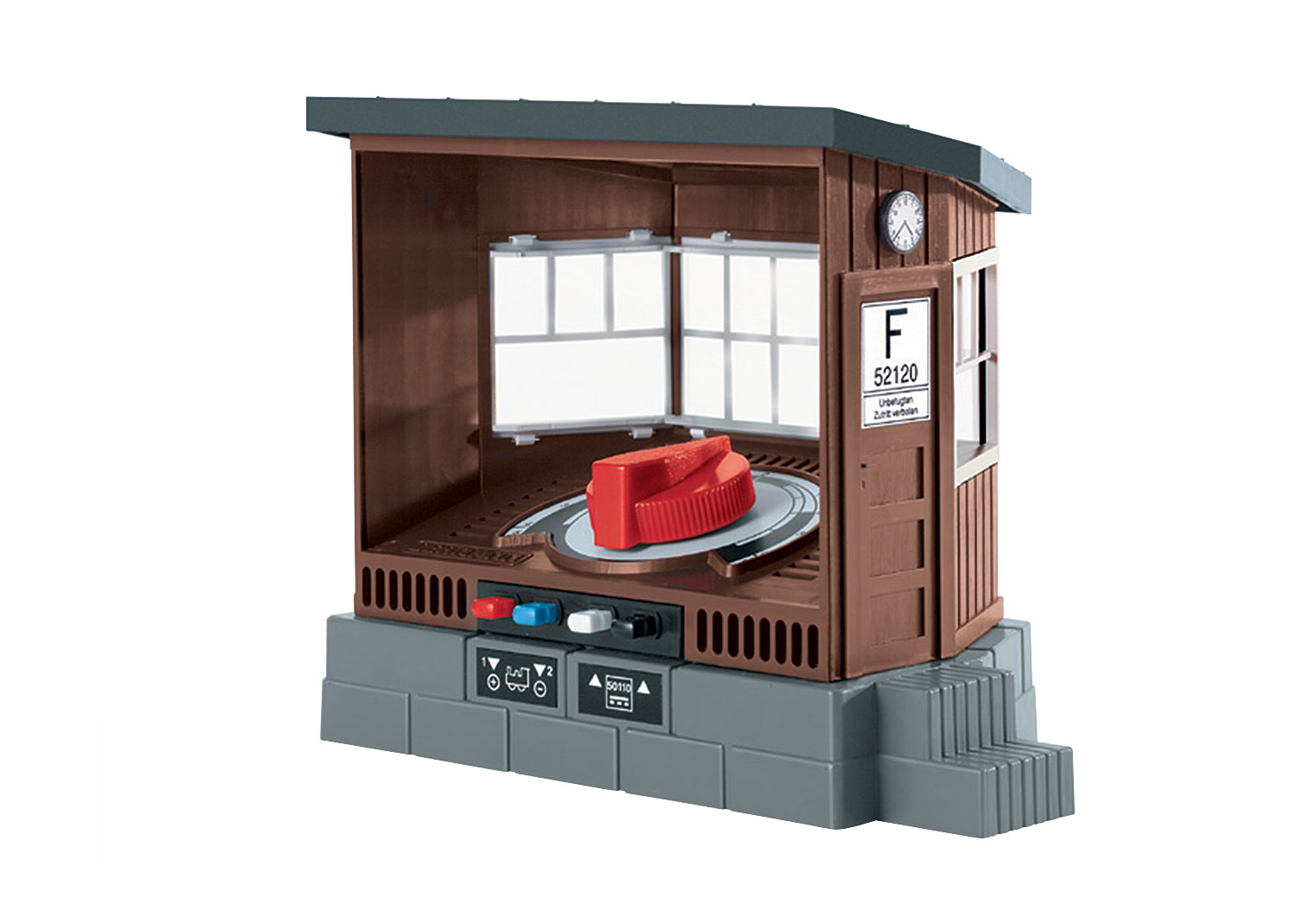

The classic LGB control panel in the attendant's house now offers modern features, for example: max. 5 A running current / built-in rectifier, suitable for use with any LGB transformer (DC or AC) / SIC (Special Integrated Circuit) technology provides sensitive control and smoothed DC voltage / for use indoors or outdoors / connections for cables with a cross-section of up to 1.5 mm2 / minimal waste heat / short-circuit protection / output: 0-24 V DC voltage / running current: max. 5 A / 115 x 175 x 165 mm.

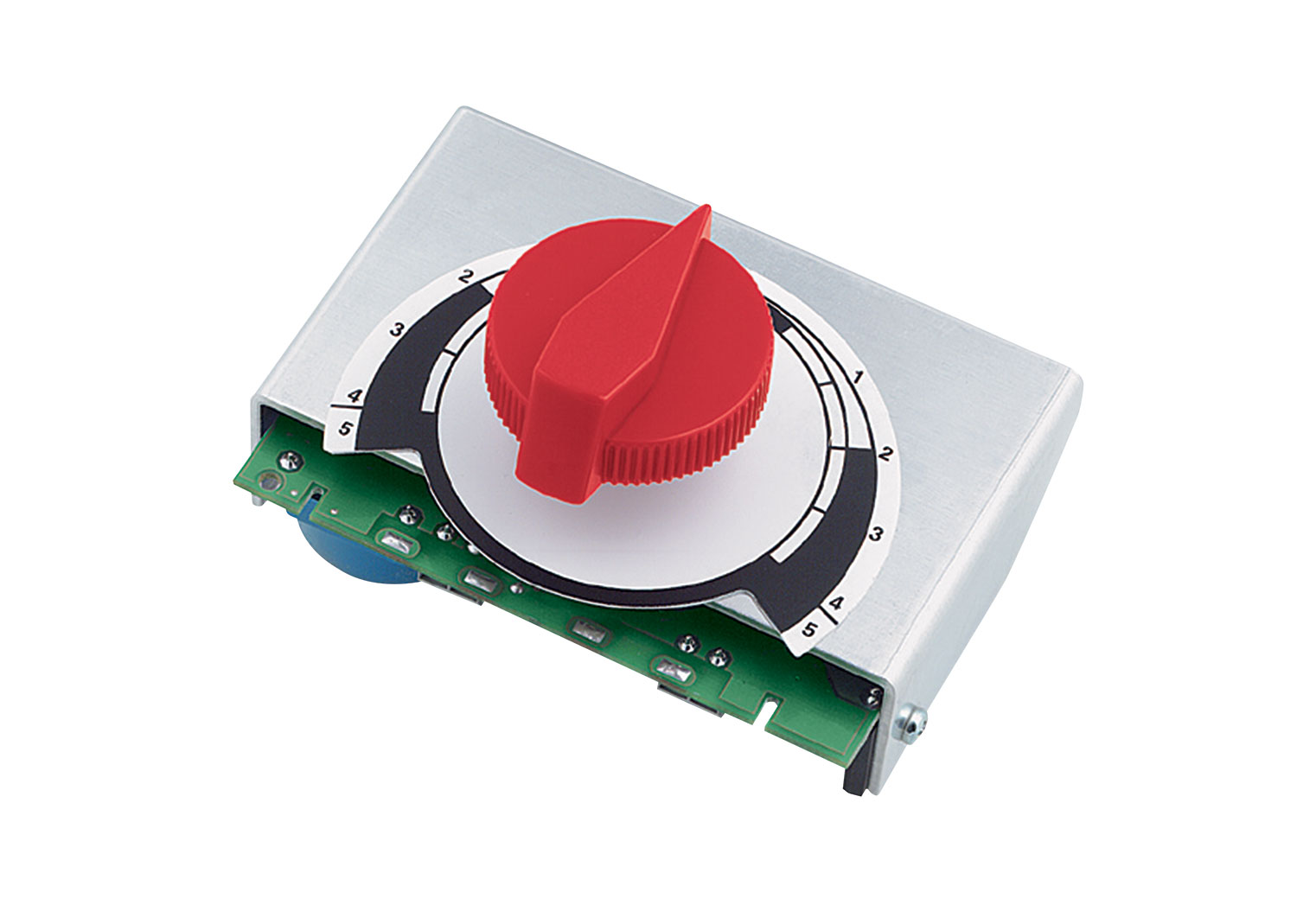

This controller is designed for special applications, e.g. for installation in track diagram control panels. With increased running current, while at the same time generating less waste heat than its predecessor. Features: max. 5 A running current / built-in rectifier / suitable for use with any LGB transformer (DC or AC) / SIC (Special Integrated Circuit) technology provides sensitive control and smoothed DC voltage / connections for cables with a cross-section of up to 1.5 mm2 / minimal waste heat / short-circuit protection / output: 0-24 V DC voltage / running current: max. 5 A / 100 x 80 x 90 mm.
Model Connection option for the s88 (60881) and s88 DC (60882) and the previous s88 feedback modules (6088 and 60880) to the Central Station II and Central Station 3 or to the 60145 Terminal. One previous connection socket for the 6088 and 60880 feedback modules as well as two RJ45 sockets for the new 60881 and 60882 feedback modules are available. In addition, there are 16 inputs for contact devices (common return detector as on the 60881). These 16 inputs can be configured specially for track diagram control panels, so that a matrix with up to 64 push buttons can be created. A 66360 or 60201 switched-mode power supply is required for operation. Highlights All connections with lift terminals
Model Connection option for the s88 (60881) and s88 DC (60882) and the previous s88 feedback modules (6088 and 60880) to the Central Station II and Central Station 3 or to the 60145 Terminal. One previous connection socket for the 6088 and 60880 feedback modules as well as two RJ45 sockets for the new 60881 and 60882 feedback modules are available. There are also 16 inputs for contact devices (return detector as on the 60881). These 16 inputs can be configured specially for track diagram control panels, so that a matrix with up to 64 buttons can be created. A 66360 or 60201 switched-mode power supply is required for operation. Highlights All connections with rising-clamp terminals

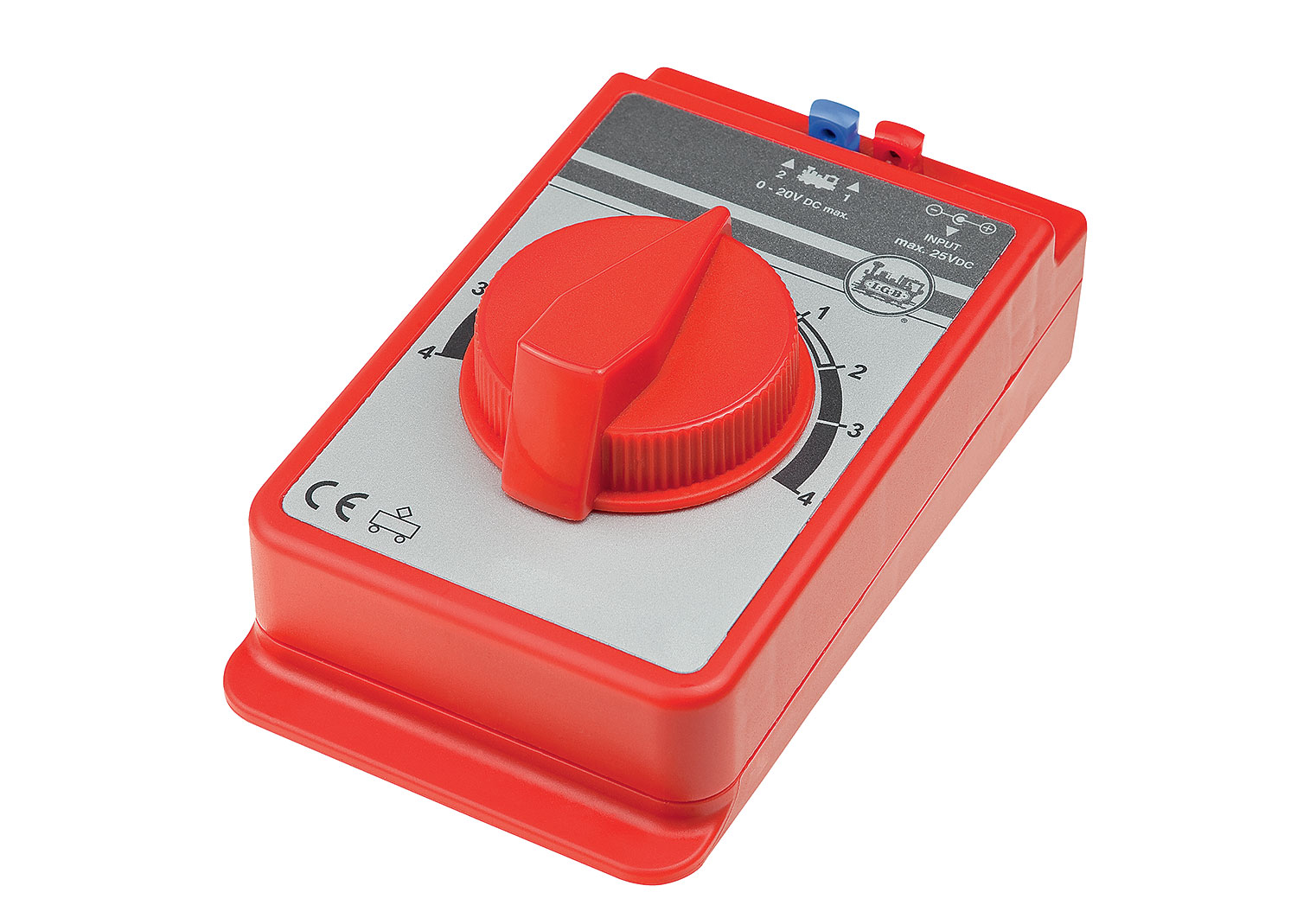

Controller for use with the 51092 switched-mode power supply.
You want to listen to the sound spectrum of your favourite loco, or the special sound of that loco around the corner in the yard – on your model railroad? No problem with ESU’s LokProgrammer!
Prototype Note: The connector box 60114 or 60112 (Gauge 1) or 60116 or 60113 (H0) is required to connect the Mobile Station. Model Digital handheld controller unit. 40 locomotives can be controlled with direct access. Locomotive selection from the integrated Märklin Digital locomotive database or by means of digital addresses. Up to 32 locomotive functions and 320 solenoid accessories can be controlled. Automatic display of the function statuses in the integrated backlit b/w full graphics display by means of self-explanatory pictograms with mfx locomotives or when a locomotive is selected from the integrated digital locomotive database. Integrated locomotive card reader. Red illuminated stop button. 1.9 A power unit in the optionally available track box (60114 or 60112/60116 or 60113). Direct connection of 2 Mobile Stations (60657) to one track box (60112/60114 or 60113/60116), which then work together in master-slave mode. By using MS II hubs (60122) the number of controllers used can be increased to up to 10. When the Mobile Station is operated on the Central Station (60216, 60226 as well as 60213-60215), the Central Station settings (the complete locomotive list of the Central Station, all of the solenoid accessories of the Central Station keyboard with their designations) can be accessed. Running and controlling vehicles in the motorola, mfx, and DCC formats, switching solenoid accessories in the motorola and DCC formats. Dimensions 160 x 100 x 39 mm. *After update 1.4.1 of the 60216/60226 and update 3.55 of the 60657/66955. Highlights Simple, convenient operation Backlit graphics display with self-explanatory pictograms Up to 32 controllable auxiliary functions. 320 solenoid accessories can be controlled Integrated locomotive card reader Simple cabling (plug & play) to the track box and the Central Station Integrated Märklin Digital locomotive database
Model Digital DCC hand controller unit. 40 locomotives can be controlled with direct access. Up to 32 locomotive functions and 320 solenoid accessories can be controlled. The function statuses are shown on the integrated backlit black-and-white full graphics display. Integrated locomotive card reader. Red illuminated stop button. 1.9 A power section in the optionally available track box (60116 or 60113). 2 Mobile Stations (60955) can be connected directly to one track box (60116 or 60113); they then work together in master-slave mode. By using MS II hubs (60122) the number of controllers in use can be increased to up to 10. When the Mobile Station is operated on the Central Station (60216, 60226 as well as 60214-60215), the Central Station settings (the complete locomotive list of the Central Station, all solenoid accessories of the Central Station keyboard with their designations) can be accessed. Dimensions 160 x 100 x 39 mm. Highlights DCC control unit for simple, comfortable operation Backlit graphics display with self-explanatory pictograms Up to 32 controllable additional functions. 320 solenoid accessories can be controlled Integrated locomotive card reader Simple wiring (Plug & Play) to the track box and the Central Station
Prototype Note: A CS2 or CS3 with a WLAN link or the WLAN receiver box 60117 is required as the receiver for the Mobile Station WLAN. Model Digital handheld controller unit. 40 locomotives can be controlled with direct access. Automatic registration of mfx locomotives. Integrated locomotive database for selecting older Märklin/Trix/LGB locomotives. Manual registration of MM and DCC locomotives via digital addresses is possible. Up to 32 locomotive functions can be controlled, with display of the function states. Self-explanatory function pictograms with mfx and database locomotives. Up to 320 solenoid accessories can be controlled. Can be operated with one hand by means of the supplied grip (Pop Socket) on the back. The display content rotates to match the position of the unit. Illuminated stop button to signal the stop state. Backlit black-and-white full graphic display. Dimensions 160 x 100 x 42 mm. Wireless coupling with a WLAN receiver box (60117) or with a Central Station (60216, 60226 as well as 60213–60215), if the latter is part of a WLAN-capable network. When coupled with a Central Station, the Mobile Station WLAN can access its complete locomotive list and the solenoid accessories with the addresses 1 to 320. Up to four MS WLAN units can be coupled to one WLAN receiver box (item 60117). 4 AAA batteries are required to operate the unit; these are not included in the contents supplied. Available exclusively in the countries of the European Union, in CH, JP, UK, USA, Canada, Australia and New Zealand. Highlights Simple operation, familiar from the MS2, even without looking One-handed operation with the supplied grip (Pop Socket) on the back New haptic rotary control for even more comfortable handling Backlit graphic display with self-explanatory pictograms The display content rotates to match the position of the unit Simple connection to the WLAN receiver box or to a Central Station 2, 3 or 3 plus Up to 32 controllable additional functions. 320 solenoid accessories can be controlled Integrated Märklin Digital locomotive database. … and of course all the great features of the MS2
Prototype Note: A CS2 or a CS3/CS3+ with a WLAN connection or the WLAN receiver box 60117 is required as a receiver for the MS WLAN. Model Digital handheld controller unit. 40 locomotives can be controlled with direct access. Automatic registration of mfx locomotives. Integrated locomotive database for selecting older Märklin/Trix/LGB locomotives. Manual registration of MM and DCC locomotives by means of digital addresses is possible. Up to 32 locomotive functions can be controlled, with a display of the function statuses. Self-explanatory function pictograms with mfx and database locomotives. Up to 320 solenoid accessories can be controlled. Can be operated with one hand thanks to the grip (Pop Socket) included on the back. The display content rotates to match the position of the unit. Illuminated stop button to signal the stop status. Backlit b/w full graphics display. Dimensions 160 x 100 x 42 mm. Wireless coupling with a WLAN receiver box (60117) or with a CS2 as well as a CS3/CS3+ (60216, 60226 as well as 60213–60215), if the latter is part of a WLAN-capable network. When coupled with a CS, the Mobile Station WLAN can access its complete locomotive list and the solenoid accessories with the addresses 1 to 320. Up to four MS WLAN units can be coupled to one WLAN receiver box (item no. 60117). Either 4 AAA batteries or corresponding rechargeable batteries can be used to operate the unit. However, these are not included in the contents supplied. Available exclusively in the countries of the European Union, USA, Canada, CH, UK, Japan, Australia, and New Zealand. Highlights Simple operation, familiar from the MS2, even without looking One-handed operation with the grip (Pop Socket) included on the back New tactile rotary controller for even more convenient handling Backlit graphics display with self-explanatory pictograms The display content rotates to match the position of the unit Simple connection to the WLAN receiver box or to a Central Station 2, 3 or 3 plus Up to 32 controllable auxiliary functions. 320 solenoid accessories can be controlled Integrated Märklin Digital locomotive database Can be used in the 2-rail and 3-rail area. … and of course all of the great features of the MS2 Note Operate the layout wirelessly with one hand with the Mobile Station WLAN!
