Digital electronics and H0 locomotives

ESU, LokSound sound and the SBB Ae 6/6 in H0

LokSound sound decoders, LokPilot decoders, the ECoS command station, the Mobile Control Pro throttle and SwitchPilot accessory decoders: ESU, based in Neu-Ulm, equips your digital layout from locomotive to turnout, and builds sound-fitted H0 locomotives such as the SBB Ae 6/6.

Choose a family See all items

  • 245items in the shop
  • Since 1999LokSound sound decoders
  • 4 protocolsDCC, Motorola, Selectrix and M4
ESU SBB Ae 6/6 11402 'Uri' locomotive in H0, green livery

What ESU brings to your layout

  • The SBB Ae 6/6 in H0: metal body structure and frame, digitally raised and lowered pantographs, original Ae 6/6 sounds on a LokSound 5 decoder and two speakers. A plug-in pickup and a switch for two-rail or three-rail running.
  • LokSound 5, sound since 1999: up to 10 sound channels at once, at least 10 amplified outputs, DCC, Motorola, Selectrix and M4, and automatic registration with the command station via RailComPlus.
  • LokPilot 5 for driving: the same four protocols plus analogue running, at least 10 function outputs of 250 mA, load control adjustable through up to 10 CVs.
  • From control desk to turnout: ECoS command station with a 7-inch touchscreen, the wireless Mobile Control Pro throttle, also for Z21 and CS3, and SwitchPilot 3 for turnouts, colour-light signals and up to eight servos.

Our favourites to equip your layout

LokSound 5 DCC/MM/SX/M4 21MTC with 11x15mm speaker
ESU 58419
LokSound 5 DCC/MM/SX/M4 21MTC with 11x15mm speaker

LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC NEM660, with speaker 11x15mm, gauge: 0, H0 The LokSound 5 is the most important member of the LokSound family. Due to the combination of the digital decoder and the sound module on one circuit board we achieve the smallest possible dimensions of 30 mm x 15.5 mm. Therefore it fits into almost any H0 or 0 gauge locomotive. LokSound 5 decoders are available with all popular interface types and are supplied with a sugar cube speaker (11 mm x 15 mm) and a sound enclosure. The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes Like all products of the LokSound family the LokSound 5 is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Central Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound 5 decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it.  Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types. LokSound 5 DCC The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Betrieb unter DCC mit RailComPlus®, M4, Motorola® und Selectrix® 32 Funktionen schaltbar (abhängig von der Zentrale) 32-Bit-Prozessor Digitaler Class-„D“-Verstärker mit bis zu 3 W Leistung (LokSound 5 XL: 13 W) Jeder Kanal in 16-Bit-Auflösung und 31250 kHz Samplerate Geräuschspeicher mit 128 Mbit Kapazität Motorregelung mit 50 kHz Taktfrequenz RC-Servos und Susi-Module ansteuerbar 3 neue, individuell einstellbare Bremsregler Zweistufige Schwerlast-Simulation Updatefähig mit ESU-LokProgrammer LokSound 5 Universal-Sound-Decoder für die Spurweiten H0 und Spur 0 Motorstrom 1,5 A Je nach Schnittstelle bis zu 12 verstärkte Funktionsausgänge für Sonderfunktionen (Total: Bis zu 15 Ausgänge) 10 Soundkanäle gleichzeitig abspielbar Ab Werk mit 11x15-mm-„Zuckerwürfel“-Lautsprecher mit anpassbarem Schallkapsel-Set PowerPack-Speicherkondensator optional anschließbar Abmessungen: 30 mm x 15,5 mm, Höhe abhängig von Schnittstelle 8-pin NEM 652 PluxX22 6-pin NEM 651 21MTC 21MTC MKL Click the image for a bigger view. Instruction manual Art.No. Delivery 58420 LokSound 5 DCC "blank decoder", 8-pin NEM652, gauge: 0, H0 Only available at ESU LLC! 58429 LokSound 5 DCC "blank decoder", 21MTC NEM660, gauge: 0, H0 Only available at ESU LLC! 58410 LokSound 5 DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: 0, H0 58412 LokSound 5 DCC/MM/SX/M4 "blank decoder", PluX22, with speaker 11x15mm, gauge: 0, H0 58419 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC NEM660, with speaker 11x15mm, gauge: 0, H0 58449 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC "MKL", with speaker 11x15mm, gauge: 0, H0

Regular price: CHF 111.00

In stock: 3 on the shelf, shipped within 1-3 days

LokSound 5 micro DCC/MM/SX/M4
ESU 58813
LokSound 5 micro DCC/MM/SX/M4

LokSound 5 micro DCC/MM/SX/M4 "blank decoder", single wires, with Speaker 11x15mm, gauge: N, TT, H0 The LokSound 5 micro is a “little wonder”: With only 21mmx10mm footprint, it is by far one of the smallest LokSound decoders we’ve ever built. Thus it should fit into all N gauge and TT vehicles, but is also suitable for small H0 vehicles. All LokSound decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types. The decoder is supplied with an 11mm x 15mm sugar cube speaker as well as a sound enclosure set. The LokSound 5 micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes The LokSound 5 micro is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 micro decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 micro decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A double class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions Despite its small dimensions the LokSound 5 micro decoder has at least 6 amplified function outputs as well as one logic output. There are two more logic outputs on the Next18 interface, which alternately may be employed to control RC servos. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 micro has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 micro decoder supplies sufficient motor current (up to 0.75 A) for the intended applications. LokSound 5 micro DCC The LokSound 5 Micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Betrieb unter DCC mit RailComPlus®, M4, Motorola® und Selectrix® 32 Funktionen schaltbar (abhängig von der Zentrale) 32-Bit-Prozessor Digitaler Class-„D“-Verstärker mit bis zu 3 W Leistung (LokSound 5 XL: 13 W) Jeder Kanal in 16-Bit-Auflösung und 31250 kHz Samplerate Geräuschspeicher mit 128 Mbit Kapazität Motorregelung mit 50 kHz Taktfrequenz RC-Servos und Susi-Module ansteuerbar 3 neue, individuell einstellbare Bremsregler Zweistufige Schwerlast-Simulation Updatefähig mit ESU-LokProgrammer LokSound 5 micro Motorstrom 0,75 A Je nach Schnittstelle bis zu 6 verstärkte Funktionsausgänge für Sonderfunktionen (total: 9 Ausgänge) Next18-Schnittstelle serienmäßig, Adapterkabel für andere Schnittstellen liegen bei Ab Werk mit 11x15-mm-„Zuckerwürfel“-Lautsprecher mit anpassbarem Schallkapsel-Set RC-Servos und Susi-Module ansteuerbar PowerPack-Speicherkondensator optional anschließbar Abmessungen: 21 mm x 10 mm 8-pin NEM 652 PluxX16 6-pin NEM 651 Next18 Click the image for a bigger view. Instruction manual Art.No. Delivery 58820 LokSound 5 micro DCC "blank decoder", 8-pin NEM652, gauge: N, TT, H0 Only available at ESU LLC! 58823 LokSound 5 micro DCC "blank decoder", single wires, gauge: N, TT, H0 Only available at ESU LLC! 58828 LokSound 5 micro DCC "blank decoder", Next18, gauge: N, TT, H0 Only available at ESU LLC! 58810 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: N, TT, H0 58813 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", single wires, with Speaker 11x15mm, gauge: N, TT, H0 58816 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 6-pin NEM651, with Speaker 11x15mm, gauge: N, TT, H0 58818 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", Next18, with Speaker 11x15mm, gauge: N, TT, H0 51993 Wire harness, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube 51994 Adapter board, 18-pin Next-18 socket to NEM651 6-pin, Flex, 88mm, with heat shrink tube 51995 Adapter board, 18-pin Next-18 socket to NEM652 8-pin, Flex, 88mm, with heat shrink tube 51996 Adapter board, 18-pin Next-18 socket to Plux16

Regular price: CHF 122.00

In stock: 4 on the shelf, shipped within 1-3 days

LokPilot 5 DCC/MM/SX/M4 PLUX22 NEM658
ESU 59612
LokPilot 5 DCC/MM/SX/M4 PLUX22 NEM658

LokPilot 5 DCC/MM/SX/M4, PLUX22 NEM658, gauge H0 ,0 The LokPilot 5 is the most important representative of the LokPilot family and is suitable for almost all questions in locomotives of gauge H0 and 0. LokPilot 5 decoders are offered with all common interfaces. Modes The LokPilot 5 is a real multi-protocol decoder. He masters the data format DCC as well as Motorola®, Selectrix® and M4. In DCC format, 14 to 128 speed steps are as natural as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus®, the decoders log on to a suitable digital center fully automatically. It masters all DCC programming modes and, thanks to RailCom®, the CV values ​​on the main track can be read out with suitable control centers. Auxiliary registers exist for control centers that can only program CVs from 1-255. Motorola® users benefit from up to 28 speed steps with 255 addresses. Three additional Motorola® addresses enable the activation of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021. The M4 protocol enables automatic registration at mfx®-compatible control centers. All 32 possible function keys are offered here. The LokPilot 5 decoder recognizes the Märklin® braking distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with DC voltage is also possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two stations. The LokPilot 5 decoder can be used on analog DC and AC railways.The decoder switches between the operating modes fully automatically "on-the-fly". Usually nothing needs to be set. Features We know that you want your locomotives to be as realistic as possible. Therefore, we packed the LokPilot 5 with function outputs. Depending on the interface version, each LokPilot 5 decoder offers at least 10 amplified function outputs with 250mA output current each. In the versions with PluX22 or 21MTC interface, 4 outputs are added to control servos or logic level outputs. All important lighting functions are available. The brightness of each output can be set separately. The decoder masters the automatic pressing and detaching when uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The engine control of the LokPilot 5 has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors - the typical "hum" is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function enables the decoder to be automatically calibrated to the motor. With up to 1.5A motor current, the LokPilot 5 decoder provides enough juice even for older motors. Operational safety On request, a PowerPack can be connected to the LokPilot 5 to bridge dirty rail sections. Protection Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. Possible under Selectrix® operation. Programming must be carried out in DCC mode. Programming with "pure" Selectrix® devices is not possible. Click the image for a bigger view. Betriebsarten: NMRA/DCC mit 14, 28 und 128 Fahrstufen, DCC RailCom® DCC 2-stellige und 4-stellige Adressen (kurze und lange Adressen) Digital Motorola® (alt und neu), bis zu 255 Adressen im Motorola®-Betrieb Selectrix® Fahrbetrieb M4-Betrieb (Automatische Anmeldung an mfx®-kompatiblen Zentralen) Analog Gleichspannung (abschaltbar). Analog Wechselspannung (abschaltbar) Automatische Erkennung der Betriebsart und DCC-Fahrstufeneinstellung Unterstützung der Lenz® LG100, Märklin®, Roco® Bremsstrecken und ZIMO® HLU Befehle Unterstützung für ABC Bremsmodus und ABC-Pendelzugstrecke Falschfahrbit / Speicherung der Betriebszustände Intelligenter Programmiermodus mit Märklin® 6021® Rangiergang und Anfahr- und Bremsverzögerung per Taste schaltbar Fahrtreglerteil: 2,0 A Dauerbelastbarkeit Anschluss von Gleichstrom- Glockenanker- und Wechselstrommotoren (mit Permanentmagnet) Geräuschlose, motorschonende Ansteuerung mit bis zu 50 kHz Taktfrequenz Motorausgang gegen Überlast geschützt. Lastregelung der 5. Generation (abschaltbar) Funktionsausgänge: 10 verstärkte Funktionsausgänge Version mit 21MTC-Schnittstelle zusätzlich 2 Logiklevelausgänge sowie 2 weitere Logiklevelausgänge statt SUSI Version mit PluX22-Schnittstelle 2 Logiklevelausgänge statt SUSI 250mA Belastbarkeit pro verstärktem Ausgang Summenstrom aller Funktionsausgänge ca. 500mA. Ausgänge kurzschlussfest Belegung der Funktionsausgänge frei wählbar (function mapping) Dimensionen: 21,4mm x 15,5mm x 4,5mm Instruction manual Art.No. Delivery 59610 LokPilot 5 DCC/MM/SX/M4, 8-pin NEM652, gauge H0 ,0 59612 LokPilot 5 DCC/MM/SX/M4, PLUX22 NEM658, gauge H0 ,0 59616 LokPilot 5 DCC/MM/SX/M4, 6-pin NEM651, gauge H0 ,0 59619 LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660, gauge H0 ,0 59649 LokPilot 5 DCC/MM/SX/M4, 21MTC MKL, gauge H0 ,0

Regular price: CHF 39.00

In stock: 3 on the shelf, shipped within 1-3 days

LokPilot 5 DCC/MM/SX/M4 21-pin NEM660
ESU 59619
LokPilot 5 DCC/MM/SX/M4 21-pin NEM660

LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660, gauge H0 ,0 The LokPilot 5 is the most important representative of the LokPilot family and is suitable for almost all questions in locomotives of gauge H0 and 0. LokPilot 5 decoders are offered with all common interfaces. Modes The LokPilot 5 is a real multi-protocol decoder. He masters the data format DCC as well as Motorola®, Selectrix® and M4. In DCC format, 14 to 128 speed steps are as natural as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus®, the decoders log on to a suitable digital center fully automatically. It masters all DCC programming modes and, thanks to RailCom®, the CV values ​​on the main track can be read out with suitable control centers. Auxiliary registers exist for control centers that can only program CVs from 1-255. Motorola® users benefit from up to 28 speed steps with 255 addresses. Three additional Motorola® addresses enable the activation of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021. The M4 protocol enables automatic registration at mfx®-compatible control centers. All 32 possible function keys are offered here. The LokPilot 5 decoder recognizes the Märklin® braking distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with DC voltage is also possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two stations. The LokPilot 5 decoder can be used on analog DC and AC railways.The decoder switches between the operating modes fully automatically "on-the-fly". Usually nothing needs to be set. Features We know that you want your locomotives to be as realistic as possible. Therefore, we packed the LokPilot 5 with function outputs. Depending on the interface version, each LokPilot 5 decoder offers at least 10 amplified function outputs with 250mA output current each. In the versions with PluX22 or 21MTC interface, 4 outputs are added to control servos or logic level outputs. All important lighting functions are available. The brightness of each output can be set separately. The decoder masters the automatic pressing and detaching when uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The engine control of the LokPilot 5 has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors - the typical "hum" is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function enables the decoder to be automatically calibrated to the motor. With up to 1.5A motor current, the LokPilot 5 decoder provides enough juice even for older motors. Operational safety On request, a PowerPack can be connected to the LokPilot 5 to bridge dirty rail sections. Protection Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. Possible under Selectrix® operation. Programming must be carried out in DCC mode. Programming with "pure" Selectrix® devices is not possible. Click the image for a bigger view. Betriebsarten: NMRA/DCC mit 14, 28 und 128 Fahrstufen, DCC RailCom® DCC 2-stellige und 4-stellige Adressen (kurze und lange Adressen) Digital Motorola® (alt und neu), bis zu 255 Adressen im Motorola®-Betrieb Selectrix® Fahrbetrieb M4-Betrieb (Automatische Anmeldung an mfx®-kompatiblen Zentralen) Analog Gleichspannung (abschaltbar). Analog Wechselspannung (abschaltbar) Automatische Erkennung der Betriebsart und DCC-Fahrstufeneinstellung Unterstützung der Lenz® LG100, Märklin®, Roco® Bremsstrecken und ZIMO® HLU Befehle Unterstützung für ABC Bremsmodus und ABC-Pendelzugstrecke Falschfahrbit / Speicherung der Betriebszustände Intelligenter Programmiermodus mit Märklin® 6021® Rangiergang und Anfahr- und Bremsverzögerung per Taste schaltbar Fahrtreglerteil: 2,0 A Dauerbelastbarkeit Anschluss von Gleichstrom- Glockenanker- und Wechselstrommotoren (mit Permanentmagnet) Geräuschlose, motorschonende Ansteuerung mit bis zu 50 kHz Taktfrequenz Motorausgang gegen Überlast geschützt. Lastregelung der 5. Generation (abschaltbar) Funktionsausgänge: 10 verstärkte Funktionsausgänge Version mit 21MTC-Schnittstelle zusätzlich 2 Logiklevelausgänge sowie 2 weitere Logiklevelausgänge statt SUSI Version mit PluX22-Schnittstelle 2 Logiklevelausgänge statt SUSI 250mA Belastbarkeit pro verstärktem Ausgang Summenstrom aller Funktionsausgänge ca. 500mA. Ausgänge kurzschlussfest Belegung der Funktionsausgänge frei wählbar (function mapping) Dimensionen: 21,4mm x 15,5mm x 4,5mm Instruction manual Art.No. Delivery 59610 LokPilot 5 DCC/MM/SX/M4, 8-pin NEM652, gauge H0 ,0 59612 LokPilot 5 DCC/MM/SX/M4, PLUX22 NEM658, gauge H0 ,0 59616 LokPilot 5 DCC/MM/SX/M4, 6-pin NEM651, gauge H0 ,0 59619 LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660, gauge H0 ,0 59649 LokPilot 5 DCC/MM/SX/M4, 21MTC MKL, gauge H0 ,0

Regular price: CHF 39.90

In stock: 3 on the shelf, shipped within 1-3 days

SwitchPilot 3 Servo 8-channel DCC/MM OLED RC-Feedback
ESU 51832
SwitchPilot 3 Servo 8-channel DCC/MM OLED RC-Feedback

SwitchPilot 3 Servo, 8x servo decoder, DCC/MM, OLED, with RC-Feedback, updatable SwitchPilot 3 servo decoders are optimized for stationary use on your system and can control up to eight RC servo drives. In order to facilitate the rather cumbersome configuration of magnetic article decoders, the SwitchPilot 3 Servo has an innovative operating concept consisting of a 4-line, illuminated OLED display and three input buttons. Modes The SwitchPilot 3 servo is multi-protocol and can be used with workstations according to the Märklin® Motorola® system (e.g. 6021, Central Station® or Mobile Station®) as well as DCC-enabled central. The configuration can take place on both the main track and the programming track. Thanks to RailCom®, CVs can also be read out. Functioning The SwitchPilot 3 servo can be supplied directly from the digital system or an external DC or AC voltage source. The SwitchPilot 3 servo has eight outputs for the control of RC servo drives. In doing so, it can control these drives so precisely that, in addition to switching switches, any other slow movement sequences can be controlled. The SwitchPilot 3 servo has a built-in power-on pulse suppression to eliminate or reduce the system-related "twitching" of RC servos when applying the supply voltage. Furthermore, the power supply to the servo can be interrupted to prevent a "hum" of some inexpensive servos. Each of the eight servos can be operated either in "digital mode" or in the "proportional mode" introduced for the first time with the SwitchPilot 3 servo: In digital mode, the servo can start two end positions "A" and "B", depending on the switching position on the control panel. The position of the two end positions as well as the speed at which thethe servo moves in the desired direction, can be individually set on the SwitchPilot 3 servo. The digital mode is perfect for switching switches or signals that should always remain in a fixed position. In proportional mode, the servo can move and stop in any position within the end positions "A" and B. The servo only runs as long as the control panel sends a command. If you release the button, the servo stops. In this way, a servo can be stopped in any desired position. The servo speed can be adjusted individually. The proportional mode is ideal for (water) cranes or engine shed gates or any other application, for which intermediate positions are also required. For each servo, in addition to the end positions and the rotational speeds, it can be determined whether it should rock up when reaching the final position. Furthermore, the generation of the servo pulse can be influenced to adapt to the different RC servos on the market or the power supply of each servo can be switched off individually. In this way, cheap so-called so-called Analog servos as well as modern digital servos (with microcontroller) optimally controlled. Analogue Operation The SwitchPilot 3 servo can be used as a special feature without a digital control panel: On request, up to 16 buttons can be connected for direct switching of the servos. Set The SwitchPilot 3 servo can be flexibly adjusted either on the programming track with DCC control panels or on the main track with POM ("Programming on Main") or can also be read out via RailCom® CVs. On request, he also learns the addresses directly via a programming button. The setting is, of course, the simplest with the integrated OLED displays as well as the three input buttons: All (!) Settings can be checked directly on the decoder and changed on request. "Programming" with the help of your headquarters is not required. It really can't be any easier. The ESU LokProgrammer can be used for firmware updates. Protection As with our locomotive decoders, the outputs of the SwitchPilot 3 servo are protected against overload. We want you to enjoy your decoder for as long as possible.

Selling price: CHF 61.65 RRP CHF 64.90

In stock: 1 on the shelf, shipped within 1-3 days

Servo drive with metal gear mechanism, microcontroller, 30 cm cable harness, fixing material
ESU 51805
Servo drive with metal gear mechanism, microcontroller, 30 cm cable harness, fixing material

Servo Motor, precision mini-servo, micro-controlled with metal gearing, incl. mounting kit ESU proudly presents a further, newly-developed servo motor for all ambitious model railway fans. The „Precision Servo Motor - Metal“ is preferred by all model railroaders who look for a powerful servo with metal gearing. Thanks to its metal gearing the servo is able to lift nearly twice the load (1.8 kg) of its plastic gearing brother. Moreover, the „Precision Servo Motor - Metal“ is appropriate for all situations in which splicing and beating claim high mechanical requirements from the servo and where the sound development does not play such an important role. With the same measurements as the Precision Servo Motor, the metal gearing is also equipped with the new, micro-processed control electronics for a precise, sensitive heading to the required position. Therefore the impuls suppression makes sure that there won´t be any tremors on the layout when you switch it on. The 30cm cables makes easy wiring possible. Also, the „Precision Servo Motor - Metal“ comes with innovative and well-proven accessories such as a servo holder and controlling wires. Art.No. 51805 Servo Motor, precision mini-servo, micro-controlled with metal gearing, incl. mounting kit

Regular price: CHF 23.90

In stock: 5 on the shelf, shipped within 1-3 days

LokSound 5 DCC/MM/SX/M421MTC MKL0 H0
ESU 58449
LokSound 5 DCC/MM/SX/M421MTC MKL0 H0

LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC "MKL", with speaker 11x15mm, gauge: 0, H0 The LokSound 5 is the most important member of the LokSound family. Due to the combination of the digital decoder and the sound module on one circuit board we achieve the smallest possible dimensions of 30 mm x 15.5 mm. Therefore it fits into almost any H0 or 0 gauge locomotive. LokSound 5 decoders are available with all popular interface types and are supplied with a sugar cube speaker (11 mm x 15 mm) and a sound enclosure. The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes Like all products of the LokSound family the LokSound 5 is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Central Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound 5 decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it.  Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types. LokSound 5 DCC The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Betrieb unter DCC mit RailComPlus®, M4, Motorola® und Selectrix® 32 Funktionen schaltbar (abhängig von der Zentrale) 32-Bit-Prozessor Digitaler Class-„D“-Verstärker mit bis zu 3 W Leistung (LokSound 5 XL: 13 W) Jeder Kanal in 16-Bit-Auflösung und 31250 kHz Samplerate Geräuschspeicher mit 128 Mbit Kapazität Motorregelung mit 50 kHz Taktfrequenz RC-Servos und Susi-Module ansteuerbar 3 neue, individuell einstellbare Bremsregler Zweistufige Schwerlast-Simulation Updatefähig mit ESU-LokProgrammer LokSound 5 Universal-Sound-Decoder für die Spurweiten H0 und Spur 0 Motorstrom 1,5 A Je nach Schnittstelle bis zu 12 verstärkte Funktionsausgänge für Sonderfunktionen (Total: Bis zu 15 Ausgänge) 10 Soundkanäle gleichzeitig abspielbar Ab Werk mit 11x15-mm-„Zuckerwürfel“-Lautsprecher mit anpassbarem Schallkapsel-Set PowerPack-Speicherkondensator optional anschließbar Abmessungen: 30 mm x 15,5 mm, Höhe abhängig von Schnittstelle 8-pin NEM 652 PluxX22 6-pin NEM 651 21MTC 21MTC MKL Click the image for a bigger view. Instruction manual Art.No. Delivery 58420 LokSound 5 DCC "blank decoder", 8-pin NEM652, gauge: 0, H0 Only available at ESU LLC! 58429 LokSound 5 DCC "blank decoder", 21MTC NEM660, gauge: 0, H0 Only available at ESU LLC! 58410 LokSound 5 DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: 0, H0 58412 LokSound 5 DCC/MM/SX/M4 "blank decoder", PluX22, with speaker 11x15mm, gauge: 0, H0 58419 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC NEM660, with speaker 11x15mm, gauge: 0, H0 58449 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC "MKL", with speaker 11x15mm, gauge: 0, H0

Regular price: CHF 111.00

In stock: 2 on the shelf, shipped within 1-3 days

Interior lighting set with decoder, entry and tail lights, 264mm, splitable, PowerPack option 13
ESU 50718
Interior lighting set with decoder, entry and tail lights, 264mm, splitable, PowerPack option 13

Interiour lighting set with decoder, Entry+Red marker light, 264mm, divisible, PowerPack Option, 13 LED, warm white With the digital LED interior lights from ESU, you can retrofit your N, TT or H0 gauge passenger cars with prototypical, uniform lighting. Two versions are available to suit the desired location. The digital interior lights are 264mm long, 9mm slim and each fitted with 13 (!) LEDs. In addition to a version with warm white LEDs (50718), there is also a board with yellow LEDs (50719) so that the light color always matches your existing wagons. Features The digital interior lighting consists of a 74 mm long base section, on which a digital decoder and four LEDs are mounted, and eight adjoining sections, each equipped with one LED spaced 24mm apart. The additional sections can be cut off to customize the length to suit the wagon. Furthermore, two additional 4.5mm wide, detachable LED sections are provided on the far left and right sides to illuminate the entry area. The brightness of the LEDs can be set either using a potentiometer or via software CV and remains constant regardless of the track voltage thanks to the built-in constant voltage supply. A built-in buffer capacitor bridges small current interruptions ex works. To completely prevent flickering even with poor power pickup, a special, very compact PowerPack supercapacitor (ESU item no. 50710) can be connected directly upon request. This can power the LEDs for a few seconds. The digital interior lighting comes with a soldered red tail light. Operating modes The decoder, based on the LokPilot 5 Basic and adapted to the intended use, supports  the DCC and Märklin® Motorola® protocols. It can handle 2- and 4-digit addresses and can trigger functions up to F31. Thanks to RailComPlus®, the decoders register fully automatically with a suitable DCC command station. It supports all DCC programming modes, and thanks to RailCom®, the CV values ​​can be read on the main track with suitable command stations. Auxiliary registers are available for command stations that can only program CVs 1-255. Alternatively, the decoder can be read on the programming track without an additional load resistor. The digital interior lighting can also be used on analog AC and DC systems. In both operating modes, the direction of travel is correctly detected and the tail light is switched accordingly. Functions The 13 built-in LEDs can be individually controlled in a total of seven groups: The two entrance LEDs can each be switched separately. The tail light can also be switched separately depending on the direction of travel. Furthermore, there is an amplified output and two outputs for connecting additional LEDs (e.g., for headlights on Pilot cars or toilet lighting), which can be wired individually. Various prototypical lighting effects such as soft dimming, neon tube effects, defective neon tubes, battery lighting, and much more ensure a realistic result. The ESU V5 Function Mapping allows the individual assignment of all LED groups to the desired function keys. Robust You can rely on the experience and quality of a renowned brand manufacturer, even when it comes to digital interior lighting.

Selling price: CHF 31.90 RRP CHF 33.90

In stock: 2 on the shelf, shipped within 1-3 days

All ESU items

Filter products
6-pin DCC socket cable
ESU 51951
6-pin DCC socket cable

cable harness with 6-pin plug according to NEM 651, DCC colour, length 300mm Who doesn’t know the problem: if you work on locos and decoders (e.g. run wires from loco to tender), you need thin, extremely flexible cables. These are not always easy to get. Responding to many requests from our customers, as of now we offer you super thin cables (AWG 36) with an outside diameter of only 0.5 mm (0.02 inch), in all common DCC colors. They come in 10 m (30 feet) bundles at an affordable price. If the loco in question features no digital interface and you don’t want to cut off the interface-plug of your loco, simply make use of one of our harnesses 51950 resp. 51951: Solder in the harness and then plug in the decoder. That’s how the Pro’s do it!

Selling price: CHF 4.25 RRP CHF 4.50

In stock, shipped within 1-3 days

Relay 24 Volt 505 331
ESU 51963
Relay 24 Volt 505 331

Relay 1 A miniature relay, 16 volts With our small relay, loads are controllable whose draw exceeds the decoder’s function output. Put the relay between output and load.

Selling price: CHF 3.70 RRP CHF 3.90

In stock, shipped within 1-3 days

8-pin DCC socket cable
ESU 51950
8-pin DCC socket cable

cable harness with 8-pin plug according to NEM 652, DCC colour, length 300mm Who doesn’t know the problem: if you work on locos and decoders (e.g. run wires from loco to tender), you need thin, extremely flexible cables. These are not always easy to get. Responding to many requests from our customers, as of now we offer you super thin cables (AWG 36) with an outside diameter of only 0.5 mm (0.02 inch), in all common DCC colors. They come in 10 m (30 feet) bundles at an affordable price. If the loco in question features no digital interface and you don’t want to cut off the interface-plug of your loco, simply make use of one of our harnesses 51950 resp. 51951: Solder in the harness and then plug in the decoder. That’s how the Pro’s do it!

Selling price: CHF 4.25 RRP CHF 4.50

In stock, shipped within 1-3 days

Adapter board 21MTC
ESU 51968
Adapter board 21MTC

21MTC adapter board 2, shape of 6090x, with AUX3 and AUX4 (for 21 MTC (not MKL) decoders from generation 3) The 21 MTC adapter board 2 is also suitable for digitising a loco without interface. It is very helpful, if you do not intend to wire the decoder freely or if you wish to use more than four function outputs on your LokPilot or LokSound decoder. This adapter board simulates the typcial size and shape of Märklin® 6090x-decoders and can be installed in every suitable position. Decoders with 21MTC connectors (ESU LokPilot or LokSound favoured) are simply plugged onto the adapter board. On the output side, the adapter offers already soldered cables (appr. 20cm length) for all contacts needed. Thus the wiring of your loco is child´s play. There are amplifiers (appr. 250mA each) for function AUX3 and AUX4 (the decoder´s logical outputs) so that ESU decoders have up to 12 available physical function outputs. Dimensions: Length 35.5mm x 20.0mm (With mounting tab: 40.5mm x 20.0mm) Art.No. 51968 21MTC adapter board 2, shape of 6090x, with AUX3 and AUX4 (for 21 MTC (not MKL) decoders from generation 3) 51968

Selling price: CHF 15.10 RRP CHF 15.90

In stock, shipped within 1-3 days

Adapter board for 21-pin MTC interface
ESU 51967
Adapter board for 21-pin MTC interface

21MTC adapter board (for LokSound/LokPilot V3.0 and V4.0 and LokSound/LokPilot 5) The 21 MTC adapter board is suitable for digitising a loco without interface and for the case you do not intend to wire the decoder freely. The adapter board offers a possibility for installing a decoder with 21MTC connector. This decoder is simply plugged onto the board. At the other end 21 annular rings make a clean wiring of your loco possible. A neat conversion can be made via this adapter board and enables you to use all additional functions of the 21MTC connector (e.g. loud speaker outputs). Dimensions: Length 22.0mm x 17.0mm (With mounting tab: 27.0mm x 17.0mm)

Regular price: CHF 10.90

In stock, shipped within 1-3 days

16mm x 25mm rectangular speaker, 4 Ohm, 1-2W
ESU 50330
16mm x 25mm rectangular speaker, 4 Ohm, 1-2W

Loudspeaker 16mm x 25mm, rechteckig, 4 Ohms, with sound chamber When selecting the loudspeaker the used decoder type is important. Depending on the decoder, different loudspeakers can be used as follows: LokSound V4.0 / 5 , LokSound micro V4.0 / 5 and LokSound V4.0 M4 decoders need the new speaker with an impendance of 4 Ohms . With the present 100 Ohms loudspeakers you would hardly hear anything. Conversely, you must never use the new 4 Ohms speakers with the previous LokSound V3.5 decoder. The decoder could be destroyed! When the decoder is replaced, the speaker must! be changed as well. Art.No. Delivery 50321 Loudspeaker 15mm x 11mm, 8 Ohms, with 4pc sound chamber kit 50325 Loudspeaker 16mm x 35mm square, 8 Ohms, 1~2W, with sound chamber 50326 Loudspeaker 14mm x 12mm square, 8 Ohms, 1~2W, with integrated sound chamber 50330 Loudspeaker 16mm x 25mm, rechteckig, 4 Ohms, with sound chamber 50331 Loudspeaker 20mm, round, 4 Ohms, 1~2W, with sound chamber 50332 Loudspeaker 23mm, round, 4 Ohms, 1~2W, with sound chamber 50333 Loudspeaker 28mm, round, 4 Ohms, 1~2W, with sound chamber 50334 Loudspeaker 20mm x 40mm, square, 4 Ohms, with sound chamber

Selling price: CHF 8.45 RRP CHF 8.90

In stock, shipped within 1-3 days

Servo drive with metal gear mechanism, microcontroller, 30 cm cable harness, fixing material
ESU 51805
Servo drive with metal gear mechanism, microcontroller, 30 cm cable harness, fixing material

Servo Motor, precision mini-servo, micro-controlled with metal gearing, incl. mounting kit ESU proudly presents a further, newly-developed servo motor for all ambitious model railway fans. The „Precision Servo Motor - Metal“ is preferred by all model railroaders who look for a powerful servo with metal gearing. Thanks to its metal gearing the servo is able to lift nearly twice the load (1.8 kg) of its plastic gearing brother. Moreover, the „Precision Servo Motor - Metal“ is appropriate for all situations in which splicing and beating claim high mechanical requirements from the servo and where the sound development does not play such an important role. With the same measurements as the Precision Servo Motor, the metal gearing is also equipped with the new, micro-processed control electronics for a precise, sensitive heading to the required position. Therefore the impuls suppression makes sure that there won´t be any tremors on the layout when you switch it on. The 30cm cables makes easy wiring possible. Also, the „Precision Servo Motor - Metal“ comes with innovative and well-proven accessories such as a servo holder and controlling wires. Art.No. 51805 Servo Motor, precision mini-servo, micro-controlled with metal gearing, incl. mounting kit

Regular price: CHF 23.90

In stock: 5 on the shelf, shipped within 1-3 days

20mm round speaker, 4 Ohm, 1-2W
ESU 50331
20mm round speaker, 4 Ohm, 1-2W

Loudspeaker 20mm, round, 4 Ohms, 1~2W, with sound chamber When selecting the loudspeaker the used decoder type is important. Depending on the decoder, different loudspeakers can be used as follows: LokSound V4.0 / 5 , LokSound micro V4.0 / 5 and LokSound V4.0 M4 decoders need the new speaker with an impendance of 4 Ohms . With the present 100 Ohms loudspeakers you would hardly hear anything. Conversely, you must never use the new 4 Ohms speakers with the previous LokSound V3.5 decoder. The decoder could be destroyed! When the decoder is replaced, the speaker must! be changed as well. Art.No. Delivery 50321 Loudspeaker 15mm x 11mm, 8 Ohms, with 4pc sound chamber kit 50325 Loudspeaker 16mm x 35mm square, 8 Ohms, 1~2W, with sound chamber 50326 Loudspeaker 14mm x 12mm square, 8 Ohms, 1~2W, with integrated sound chamber 50330 Loudspeaker 16mm x 25mm, rechteckig, 4 Ohms, with sound chamber 50331 Loudspeaker 20mm, round, 4 Ohms, 1~2W, with sound chamber 50332 Loudspeaker 23mm, round, 4 Ohms, 1~2W, with sound chamber 50333 Loudspeaker 28mm, round, 4 Ohms, 1~2W, with sound chamber 50334 Loudspeaker 20mm x 40mm, square, 4 Ohms, with sound chamber

Selling price: CHF 8.70 RRP CHF 8.90

In stock: 4 on the shelf, shipped within 1-3 days

LokSound 5 micro DCC/MM/SX/M4
ESU 58813
LokSound 5 micro DCC/MM/SX/M4

LokSound 5 micro DCC/MM/SX/M4 "blank decoder", single wires, with Speaker 11x15mm, gauge: N, TT, H0 The LokSound 5 micro is a “little wonder”: With only 21mmx10mm footprint, it is by far one of the smallest LokSound decoders we’ve ever built. Thus it should fit into all N gauge and TT vehicles, but is also suitable for small H0 vehicles. All LokSound decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types. The decoder is supplied with an 11mm x 15mm sugar cube speaker as well as a sound enclosure set. The LokSound 5 micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes The LokSound 5 micro is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 micro decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 micro decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A double class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions Despite its small dimensions the LokSound 5 micro decoder has at least 6 amplified function outputs as well as one logic output. There are two more logic outputs on the Next18 interface, which alternately may be employed to control RC servos. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 micro has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 micro decoder supplies sufficient motor current (up to 0.75 A) for the intended applications. LokSound 5 micro DCC The LokSound 5 Micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Betrieb unter DCC mit RailComPlus®, M4, Motorola® und Selectrix® 32 Funktionen schaltbar (abhängig von der Zentrale) 32-Bit-Prozessor Digitaler Class-„D“-Verstärker mit bis zu 3 W Leistung (LokSound 5 XL: 13 W) Jeder Kanal in 16-Bit-Auflösung und 31250 kHz Samplerate Geräuschspeicher mit 128 Mbit Kapazität Motorregelung mit 50 kHz Taktfrequenz RC-Servos und Susi-Module ansteuerbar 3 neue, individuell einstellbare Bremsregler Zweistufige Schwerlast-Simulation Updatefähig mit ESU-LokProgrammer LokSound 5 micro Motorstrom 0,75 A Je nach Schnittstelle bis zu 6 verstärkte Funktionsausgänge für Sonderfunktionen (total: 9 Ausgänge) Next18-Schnittstelle serienmäßig, Adapterkabel für andere Schnittstellen liegen bei Ab Werk mit 11x15-mm-„Zuckerwürfel“-Lautsprecher mit anpassbarem Schallkapsel-Set RC-Servos und Susi-Module ansteuerbar PowerPack-Speicherkondensator optional anschließbar Abmessungen: 21 mm x 10 mm 8-pin NEM 652 PluxX16 6-pin NEM 651 Next18 Click the image for a bigger view. Instruction manual Art.No. Delivery 58820 LokSound 5 micro DCC "blank decoder", 8-pin NEM652, gauge: N, TT, H0 Only available at ESU LLC! 58823 LokSound 5 micro DCC "blank decoder", single wires, gauge: N, TT, H0 Only available at ESU LLC! 58828 LokSound 5 micro DCC "blank decoder", Next18, gauge: N, TT, H0 Only available at ESU LLC! 58810 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: N, TT, H0 58813 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", single wires, with Speaker 11x15mm, gauge: N, TT, H0 58816 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 6-pin NEM651, with Speaker 11x15mm, gauge: N, TT, H0 58818 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", Next18, with Speaker 11x15mm, gauge: N, TT, H0 51993 Wire harness, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube 51994 Adapter board, 18-pin Next-18 socket to NEM651 6-pin, Flex, 88mm, with heat shrink tube 51995 Adapter board, 18-pin Next-18 socket to NEM652 8-pin, Flex, 88mm, with heat shrink tube 51996 Adapter board, 18-pin Next-18 socket to Plux16

Regular price: CHF 122.00

In stock: 4 on the shelf, shipped within 1-3 days

LokSound 5 micro DCC/MM/SX/M4 6-pin sound decoder, 11x15 mm
ESU 58816
LokSound 5 micro DCC/MM/SX/M4 6-pin sound decoder, 11x15 mm

LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 6-pin NEM651, with Speaker 11x15mm, gauge: N, TT, H0 The LokSound 5 micro is a “little wonder”: With only 21mmx10mm footprint, it is by far one of the smallest LokSound decoders we’ve ever built. Thus it should fit into all N gauge and TT vehicles, but is also suitable for small H0 vehicles. All LokSound decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types. The decoder is supplied with an 11mm x 15mm sugar cube speaker as well as a sound enclosure set. The LokSound 5 micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes The LokSound 5 micro is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 micro decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 micro decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A double class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions Despite its small dimensions the LokSound 5 micro decoder has at least 6 amplified function outputs as well as one logic output. There are two more logic outputs on the Next18 interface, which alternately may be employed to control RC servos. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 micro has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 micro decoder supplies sufficient motor current (up to 0.75 A) for the intended applications. LokSound 5 micro DCC The LokSound 5 Micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Betrieb unter DCC mit RailComPlus®, M4, Motorola® und Selectrix® 32 Funktionen schaltbar (abhängig von der Zentrale) 32-Bit-Prozessor Digitaler Class-„D“-Verstärker mit bis zu 3 W Leistung (LokSound 5 XL: 13 W) Jeder Kanal in 16-Bit-Auflösung und 31250 kHz Samplerate Geräuschspeicher mit 128 Mbit Kapazität Motorregelung mit 50 kHz Taktfrequenz RC-Servos und Susi-Module ansteuerbar 3 neue, individuell einstellbare Bremsregler Zweistufige Schwerlast-Simulation Updatefähig mit ESU-LokProgrammer LokSound 5 micro Motorstrom 0,75 A Je nach Schnittstelle bis zu 6 verstärkte Funktionsausgänge für Sonderfunktionen (total: 9 Ausgänge) Next18-Schnittstelle serienmäßig, Adapterkabel für andere Schnittstellen liegen bei Ab Werk mit 11x15-mm-„Zuckerwürfel“-Lautsprecher mit anpassbarem Schallkapsel-Set RC-Servos und Susi-Module ansteuerbar PowerPack-Speicherkondensator optional anschließbar Abmessungen: 21 mm x 10 mm 8-pin NEM 652 PluxX16 6-pin NEM 651 Next18 Click the image for a bigger view. Instruction manual Art.No. Delivery 58820 LokSound 5 micro DCC "blank decoder", 8-pin NEM652, gauge: N, TT, H0 Only available at ESU LLC! 58823 LokSound 5 micro DCC "blank decoder", single wires, gauge: N, TT, H0 Only available at ESU LLC! 58828 LokSound 5 micro DCC "blank decoder", Next18, gauge: N, TT, H0 Only available at ESU LLC! 58810 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: N, TT, H0 58813 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", single wires, with Speaker 11x15mm, gauge: N, TT, H0 58816 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 6-pin NEM651, with Speaker 11x15mm, gauge: N, TT, H0 58818 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", Next18, with Speaker 11x15mm, gauge: N, TT, H0 51993 Wire harness, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube 51994 Adapter board, 18-pin Next-18 socket to NEM651 6-pin, Flex, 88mm, with heat shrink tube 51995 Adapter board, 18-pin Next-18 socket to NEM652 8-pin, Flex, 88mm, with heat shrink tube 51996 Adapter board, 18-pin Next-18 socket to Plux16

Regular price: CHF 112.25

In stock: 4 on the shelf, shipped within 1-3 days

LokPilot 5 DCC 21MTC NEM660 gauge H0 0
ESU 59629
LokPilot 5 DCC 21MTC NEM660 gauge H0 0

LokPilot 5 DCC, 21MTC NEM660, gauge H0 ,0 The LokPilot 5 DCC is the "twin brother" of the LokPilot 5. The two share almost all characteristics, however, the LokPilot 5 DCC is a pure DCC decoder and cannot be used on analog AC systems. This lack of flexibility comes with a cheaper price. LokPilot 5 decoders are offered with all common interfaces. Modes The LokPilot 5 DCC is a "pure-bred" DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus® the decoders register automatically with a suitable DCC system like the ESU CabControl. The decoder accepts all DCC programming modes and thanks to RailCom® the CV values ​​can be read on the main track with RailCom equipped DCC systems. For command stations that only program the CVs from 1-255 auxiliary CV registers exist. The LokPilot 5 DCC decoder recognizes the Märklin® braking sections as well as the ZIMO® HLU / ZACKCommands or the Lenz® ABC system. Also braking with DCC brake modules or with DC voltageis possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle trainenables automatic commuting between two train stations. The LokPilot 5 DCC decoder can be used on analog DC trains. The top speedcan be set separately. The decoder switches between the operating modes fully automatically "on-the-fly". Features We know that you want your locomotives to be as realistic as possible. Therefore we have the LokPilot 5DCC packed with function outputs. Depending on the interface version, each LokPilot offers 5 DCCDecoder at least 10 amplified function outputs with 250mA output current each. In the executionswith PluX22 or 21MTC interface there are 4 outputs to control servos orLogic level outputs added. All-important lighting functions are available. The brightness of each outputcan be set separately. The decoder masters automatic pushing and pullingwhen uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The engine control of the LokPilot 5 DCC has been fundamentally improved again. A variably adjustablePWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors.Operation - The typical “hum” is a thing of the past. The load control now has up to10 CVs  which can be adjusted for difficult cases. The unique "Autotune" function enablesthe automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to 1.5A of motor current. Enough juice even for older motors. Operational safety On request, a PowerPack can be fitted to the LokPilot 5 DCC to bridge dirty rail sections. Protection Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. Click the image for a bigger view. Betriebsarten: NMRA/DCC mit 14, 28 und 128 Fahrstufen, DCC RailCom® DCC 2-stellige und 4-stellige Adressen (kurze und lange Adressen) Analog Gleichspannung (abschaltbar). Automatische Erkennung der Betriebsart und DCC-Fahrstufeneinstellung Unterstützung der Lenz® LG100, Märklin®, Roco® Bremsstrecken und ZIMO® HLU Befehle Unterstützung für ABC Bremsmodus und ABC-Pendelzugstrecke Falschfahrbit / Speicherung der Betriebszustände Rangiergang und Anfahr- und Bremsverzögerung per Taste schaltbar Fahrtreglerteil: 2,0 A Dauerbelastbarkeit Anschluss von Gleichstrom- Glockenanker- und Wechselstrommotoren (mit Permanentmagnet) Geräuschlose, motorschonende Ansteuerung mit bis zu 50 kHz Taktfrequenz Motorausgang gegen Überlast geschützt. Lastregelung der 5. Generation (abschaltbar) Funktionsausgänge: 10 verstärkte Funktionsausgänge Version mit 21MTC-Schnittstelle zusätzlich 2 Logiklevelausgänge sowie 2 weitere Logiklevelausgänge statt SUSI Version mit PluX22-Schnittstelle 2 Logiklevelausgänge statt SUSI 250mA Belastbarkeit pro verstärktem Ausgang Summenstrom aller Funktionsausgänge ca. 500mA. Ausgänge kurzschlussfest Belegung der Funktionsausgänge frei wählbar (function mapping) Dimensionen: 21,4mm x 15,5mm x 4,5mm Instruction manual Art.No. Delivery 59620 LokPilot 5 DCC, 8-pin NEM652, gauge H0 ,0 59622 LokPilot 5 DCC, PLUX22 NEM658, gauge H0 ,0 59626 LokPilot 5 DCC, 6-pin NEM651, gauge H0 ,0 59629 LokPilot 5 DCC, 21MTC NEM660, gauge H0 ,0 59659 LokPilot 5 DCC, 21MTC MKL, gauge H0 ,0

Regular price: CHF 38.00

In stock: 4 on the shelf, shipped within 1-3 days

LokPilot 5 micro DCC Next18 Spur N TT
ESU 59828
LokPilot 5 micro DCC Next18 Spur N TT

LokPilot 5 micro DCC, Next18, gauge N, TT The LokPilot 5 micro DCC is the "twin" of the LokPilot 5 micro. With just 8.0mm x 7.0mm and a thickness of only 2.4mm (on the capacitor: 2.9mm), just so small that it can also be accommodated in very small locomotives of nominal sizes Z, N or TT, it is a pure DCC Decoder. This lack of flexibility is rewarded with a lower price. LokPilot 5 micro DCC decoders are available with all common interfaces. The variants with Next18 or PluX16 interface are a bit larger with a base area of 13.0mm x 9.2mm, but have 2 additional function outputs. Modes The LokPilot 5 micro DCC is a "pure-bred" DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to Rail¬ComPlus®, the decoders log on to a suitable DCC System fully automatically. It masters all DCC programming command stations. Auxiliary registers exist for DCC systems that can only program CVs from 1-255. The LokPilot 5 micro DCC decoder recognizes the Märklin® braking sections as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with DC voltage is also possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two stations. The LokPilot 5 DCC decoder can be used on analog DC trains. The maximum speed can be set separately. The decoder switches between the operating modes fully automatically "on-the-fly". Features We know that you want your locomotives to be as realistic as possible. Therefore we have the LokPilot 5 micro DCC equipped with an amazing number of function outputs. The variants with 6-pin or 8-pin Wiring harnesses offer 4 amplified function outputs, each with 180mA output current and two logic level outputs. The versions with Next18 or PluX16 interface have a total of 6 amplified outputs and two logic level outputs available. All important lighting effects are available. The brightness of each output can be adjusted separately. The decoder masters automatic pushing and pulling when uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The motor control of the LokPilot 5 micro DCC has been fundamentally improved again. A variable adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors- The typical “hum” is a thing of the past. The load control now has up to 10 CVs  which can be adjusted for difficult cases. The unique "Autotune" function enables the automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to .75A of motor current. Enough juice for most motors. Safety A PowerPack to bypass dirty track can be fitted to the LokPilot 5 micro. Protection Of course, the motor output and the function outputs are against overload protected. We want you to enjoy your decoder for as long as possible. Click the image for a bigger view. Art.No. Delivery 59820 LokPilot 5 micro DCC, 8-pin NEM652, gauge N, TT 59824 LokPilot 5 micro DCC, PluX16, gauge N, TT 59826 LokPilot 5 micro DCC, 6-pin NEM651, gauge N, TT 59827 LokPilot 5 micro DCC, 6-pin Direkt, gauge N, TT 59828 LokPilot 5 micro DCC, Next18, gauge N, TT 59857 LokPilot 5 micro DCC, 6-pin Direkt gewinkelt, gauge N, TT

Regular price: CHF 37.00

In stock: 4 on the shelf, shipped within 1-3 days

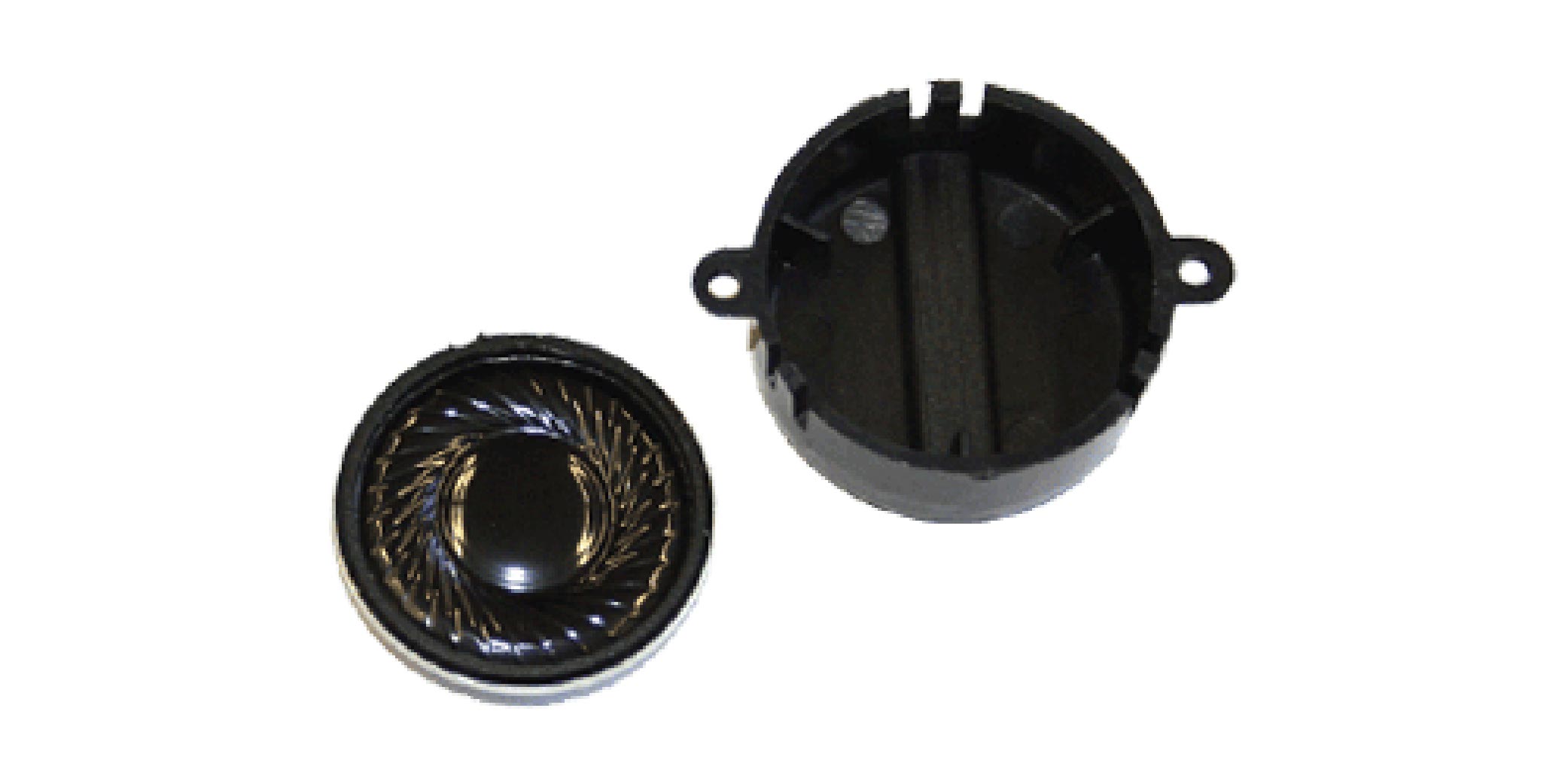

23mm round loudspeaker
ESU 50442
23mm round loudspeaker

Loudspeaker 23mm, round, 100 Ohm, with sound chamber For the well-proven LokSound V3.5, LokSound micro V3.5 and LokSound V3.0 M4 decoders we offer loudspeakers in the following sizes: 2x13mm (50 Ohms each), 2x16mm (50 Ohms each), 16x25mmm, 20mm, 23mm, 28mm, 20x40mm and 40mm. By virtue of the internal design of the decoders, the speakers feature a specially customised impedance of 100 Ohms. Only these speakers may be used! Art.No. 50335 Loudspeaker 32mm, rund, 100 Ohm, without sound chamber Expires 50442 Loudspeaker 23mm, round, 100 Ohm, with sound chamber Expires 50444 Loudspeaker 40mm, round, 100 Ohm, with sound chamber Expires 50447 Two loudspeakers 16mm, oval, je 50 Ohm, with sound chamber Expires 50448 Loudspeaker 20mm x 40mm, square, 100 Ohm, with sound chamber Expires

Selling price: CHF 8.45 RRP CHF 8.90

In stock: 3 on the shelf, shipped within 1-3 days

Cable 10 m red
ESU 51943
Cable 10 m red

Super thin cable, 0.5mm diameter, AWG36, 10m bundle, red colour Who doesn’t know the problem: if you work on locos and decoders (e.g. run wires from loco to tender), you need thin, extremely flexible cables. These are not always easy to get. Responding to many requests from our customers, as of now we offer you super thin cables (AWG 36) with an outside diameter of only 0.5 mm (0.02 inch), in all common DCC colors. They come in 10 m (30 feet) bundles at an affordable price. If the loco in question features no digital interface and you don’t want to cut off the interface-plug of your loco, simply make use of one of our harnesses 51950 resp. 51951: Solder in the harness and then plug in the decoder. That’s how the Pro’s do it!

Regular price: CHF 6.50

In stock: 3 on the shelf, shipped within 1-3 days

Grey cable, 10 m
ESU 51946
Grey cable, 10 m

Super thin cable, 0.5mm diameter, AWG36, 10m bundle, grey colour Who doesn’t know the problem: if you work on locos and decoders (e.g. run wires from loco to tender), you need thin, extremely flexible cables. These are not always easy to get. Responding to many requests from our customers, as of now we offer you super thin cables (AWG 36) with an outside diameter of only 0.5 mm (0.02 inch), in all common DCC colors. They come in 10 m (30 feet) bundles at an affordable price. If the loco in question features no digital interface and you don’t want to cut off the interface-plug of your loco, simply make use of one of our harnesses 51950 resp. 51951: Solder in the harness and then plug in the decoder. That’s how the Pro’s do it!

Regular price: CHF 6.50

In stock: 3 on the shelf, shipped within 1-3 days

Cable 10 m brown
ESU 51948
Cable 10 m brown

Super thin cable, 0.5mm diameter, AWG36, 10m bundle, brown colour Who doesn’t know the problem: if you work on locos and decoders (e.g. run wires from loco to tender), you need thin, extremely flexible cables. These are not always easy to get. Responding to many requests from our customers, as of now we offer you super thin cables (AWG 36) with an outside diameter of only 0.5 mm (0.02 inch), in all common DCC colors. They come in 10 m (30 feet) bundles at an affordable price. If the loco in question features no digital interface and you don’t want to cut off the interface-plug of your loco, simply make use of one of our harnesses 51950 resp. 51951: Solder in the harness and then plug in the decoder. That’s how the Pro’s do it!

Regular price: CHF 5.90

In stock: 3 on the shelf, shipped within 1-3 days

Cable 10 m blue
ESU 51949
Cable 10 m blue

Super thin cable, 0.5mm diameter, AWG36, 10m bundle, blue colour Who doesn’t know the problem: if you work on locos and decoders (e.g. run wires from loco to tender), you need thin, extremely flexible cables. These are not always easy to get. Responding to many requests from our customers, as of now we offer you super thin cables (AWG 36) with an outside diameter of only 0.5 mm (0.02 inch), in all common DCC colors. They come in 10 m (30 feet) bundles at an affordable price. If the loco in question features no digital interface and you don’t want to cut off the interface-plug of your loco, simply make use of one of our harnesses 51950 resp. 51951: Solder in the harness and then plug in the decoder. That’s how the Pro’s do it!

Regular price: CHF 6.50

In stock: 3 on the shelf, shipped within 1-3 days

Adapter board 21MTC for 8 reinforced outputs
ESU 51957
Adapter board 21MTC for 8 reinforced outputs

Adapter board 21MTC for 12 amplified outputs, with soldering pads and wires Our new adapter board 3 for decoders with 21MTC interface is best suited for everyone intending to digitise a loco without interface but with many functions without having to carry out major soldering work. With its compact dimensions of 30.5mm x 15.5mm it is almost the same size as the decoder and also equipped with an extra mounting lug that can be easily broken off if not required. The board is equipped with amplifiers (about 250mA each) for the function outputs AUX3 through AUX6, which are only provided as logic outputs on all VHDM, NEM resp. NMRA compliant decoders. Thus the board offers the option of up to 12 outputs. For easy handling and wiring the most important contacts are already equipped with 200mm long wires. Dimensions: Length 31.0mm x 15.5mm (With mounting tabs: 36.0mm x 15.5mm) Art.No. Delivery 51957 Adapter board 21MTC for 12 amplified outputs, with soldering pads and wires

Regular price: CHF 15.90

In stock: 3 on the shelf, shipped within 1-3 days

18-pin Next18 to open lead adapter cable
ESU 51993
18-pin Next18 to open lead adapter cable

Adapter cable, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube This adapter cable allows decoders with a Next18 interface to be hardwired. All Next18 interface connections are brought out via stranded wires with open ends. The adapter board is supplied with heat-shrink tubing. Art.No. Delivery 51993 Adapter cable, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube

Regular price: CHF 6.40

In stock: 3 on the shelf, shipped within 1-3 days

LokSound 5 DCC/MM/SX/M4 21MTC with 11x15mm speaker
ESU 58419
LokSound 5 DCC/MM/SX/M4 21MTC with 11x15mm speaker

LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC NEM660, with speaker 11x15mm, gauge: 0, H0 The LokSound 5 is the most important member of the LokSound family. Due to the combination of the digital decoder and the sound module on one circuit board we achieve the smallest possible dimensions of 30 mm x 15.5 mm. Therefore it fits into almost any H0 or 0 gauge locomotive. LokSound 5 decoders are available with all popular interface types and are supplied with a sugar cube speaker (11 mm x 15 mm) and a sound enclosure. The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes Like all products of the LokSound family the LokSound 5 is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Central Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound 5 decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions We are quite aware that you want your locomotives to be as realistic as possible. Therefore we have packed many function outputs into it.  Subject to the type of interface every LokSound 5 has at least 10 amplified outputs. The decoders with PluX22 or 21MTC interface have an additional 4 outputs for controlling servos or as logic outputs. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 decoder supplies up to 1.5A motor current, which is quite sufficient even for older motor types. LokSound 5 DCC The LokSound 5 DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Betrieb unter DCC mit RailComPlus®, M4, Motorola® und Selectrix® 32 Funktionen schaltbar (abhängig von der Zentrale) 32-Bit-Prozessor Digitaler Class-„D“-Verstärker mit bis zu 3 W Leistung (LokSound 5 XL: 13 W) Jeder Kanal in 16-Bit-Auflösung und 31250 kHz Samplerate Geräuschspeicher mit 128 Mbit Kapazität Motorregelung mit 50 kHz Taktfrequenz RC-Servos und Susi-Module ansteuerbar 3 neue, individuell einstellbare Bremsregler Zweistufige Schwerlast-Simulation Updatefähig mit ESU-LokProgrammer LokSound 5 Universal-Sound-Decoder für die Spurweiten H0 und Spur 0 Motorstrom 1,5 A Je nach Schnittstelle bis zu 12 verstärkte Funktionsausgänge für Sonderfunktionen (Total: Bis zu 15 Ausgänge) 10 Soundkanäle gleichzeitig abspielbar Ab Werk mit 11x15-mm-„Zuckerwürfel“-Lautsprecher mit anpassbarem Schallkapsel-Set PowerPack-Speicherkondensator optional anschließbar Abmessungen: 30 mm x 15,5 mm, Höhe abhängig von Schnittstelle 8-pin NEM 652 PluxX22 6-pin NEM 651 21MTC 21MTC MKL Click the image for a bigger view. Instruction manual Art.No. Delivery 58420 LokSound 5 DCC "blank decoder", 8-pin NEM652, gauge: 0, H0 Only available at ESU LLC! 58429 LokSound 5 DCC "blank decoder", 21MTC NEM660, gauge: 0, H0 Only available at ESU LLC! 58410 LokSound 5 DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: 0, H0 58412 LokSound 5 DCC/MM/SX/M4 "blank decoder", PluX22, with speaker 11x15mm, gauge: 0, H0 58419 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC NEM660, with speaker 11x15mm, gauge: 0, H0 58449 LokSound 5 DCC/MM/SX/M4 "blank decoder", 21MTC "MKL", with speaker 11x15mm, gauge: 0, H0

Regular price: CHF 111.00

In stock: 3 on the shelf, shipped within 1-3 days

LokSound 5 micro DCC/MM/SX/M4 Next18 speaker 11x15mm
ESU 58818
LokSound 5 micro DCC/MM/SX/M4 Next18 speaker 11x15mm

LokSound 5 micro DCC/MM/SX/M4 "blank decoder", Next18, with Speaker 11x15mm, gauge: N, TT, H0 The LokSound 5 micro is a “little wonder”: With only 21mmx10mm footprint, it is by far one of the smallest LokSound decoders we’ve ever built. Thus it should fit into all N gauge and TT vehicles, but is also suitable for small H0 vehicles. All LokSound decoders are equipped with a Next18 interface and are available with adapter plugs to suit all popular digital interface types. The decoder is supplied with an 11mm x 15mm sugar cube speaker as well as a sound enclosure set. The LokSound 5 micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Please note the LokSound 5 DCC decoder does not come with a speaker. Operating modes The LokSound 5 micro is a true multi protocol decoder. It supports DCC as well as Motorola®, Selectrix® and M4. Of course it supports 14 through to 128 speed steps as well as 2 and 4 digit addresses in DCC format and up to 32 functions. Thanks to RailComPlus® the decoders register themselves fully automatically on suitable command stations. This decoder supports all DCC programming modes and thanks to RailCom® you may read out the CV values on the main, provided you have a command station supporting RailCom®. There are utility registers for command stations that only facilitate programming of CVs ranging from 1 to 255. Motorola® users benefit from up to 28 speed steps for 255 addresses. Three additional Motorola® addresses facilitate triggering of 16 functions. An integral programming mode even allows programming with the good old Control Unit 6021. The M4 protocol supports the automatic registration on mfx® compatible central units. The LokSound decoder supports the Märklin® braking sections just as well as the ZIMO® HLU braking commands or the Lenz® ABC system. Braking with DCC brake generators or with DC is also possible. Furthermore the locomotive with a LokSound will come to a halt when a Selectrix® braking diode is switched into the circuit. The ABC push-pull feature enables the automatic commuting between two stations. The LokSound 5 micro decoder is also suitable for analogue DC and AC (!) layouts. Sound The LokSound 5 micro decoder can reproduce up to 10 channels simultaneously. Each channel offers up to 16 Bit / 31250 kHz and thus we have finally achieved hi-fi sound quality on your layout. For all practical purposes one cannot detect any difference to the original. A double class D audio power amplifier with up to 3W output power feeds the speakers with a permitted impedance of 4 – 32 Ohms. The huge 128 MBit sound memory assures sufficient storage capacity. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. The volume of all individual sound fragments may be adjusted separately. The outstandingly flexible sound engine without a rigid flow chart facilitates a prototypical simulation of all conceivable rail vehicles. Three separately adjustable braking functions and two alternative load scenarios provide you with maximum control of your vehicles. Functions Despite its small dimensions the LokSound 5 micro decoder has at least 6 amplified function outputs as well as one logic output. There are two more logic outputs on the Next18 interface, which alternately may be employed to control RC servos. Of course, all important lighting functions are supported. The brightness of each output may be adjusted separately. The decoder supports the automatic push and pull movements – known as the coupler waltz - required for reliable operation of digital couplers such as the ones by ROCO® and Krois® as well as Telex® couplers. Motor control Motor control of the LokSound 5 micro has been further improved. A variable PWM pulse frequency ranging from 10 kHz to 50 kHz assures perfect silent operation, particularly for coreless motors. Thus the typical hum is a thing of the past. Load control can now be adjusted with up to 10 separate CVs and thus will manage even the most difficult cases. The unique “Auto Tune” function facilitates the automatic calibration of the decoder to perfectly match the motor. The LokSound 5 micro decoder supplies sufficient motor current (up to 0.75 A) for the intended applications. LokSound 5 micro DCC The LokSound 5 Micro DCC is made for the North American and Australian markets. It is a pure DCC Decoder, which supports RailComPlus and can also be used on DC layouts. Betrieb unter DCC mit RailComPlus®, M4, Motorola® und Selectrix® 32 Funktionen schaltbar (abhängig von der Zentrale) 32-Bit-Prozessor Digitaler Class-„D“-Verstärker mit bis zu 3 W Leistung (LokSound 5 XL: 13 W) Jeder Kanal in 16-Bit-Auflösung und 31250 kHz Samplerate Geräuschspeicher mit 128 Mbit Kapazität Motorregelung mit 50 kHz Taktfrequenz RC-Servos und Susi-Module ansteuerbar 3 neue, individuell einstellbare Bremsregler Zweistufige Schwerlast-Simulation Updatefähig mit ESU-LokProgrammer LokSound 5 micro Motorstrom 0,75 A Je nach Schnittstelle bis zu 6 verstärkte Funktionsausgänge für Sonderfunktionen (total: 9 Ausgänge) Next18-Schnittstelle serienmäßig, Adapterkabel für andere Schnittstellen liegen bei Ab Werk mit 11x15-mm-„Zuckerwürfel“-Lautsprecher mit anpassbarem Schallkapsel-Set RC-Servos und Susi-Module ansteuerbar PowerPack-Speicherkondensator optional anschließbar Abmessungen: 21 mm x 10 mm 8-pin NEM 652 PluxX16 6-pin NEM 651 Next18 Click the image for a bigger view. Instruction manual Art.No. Delivery 58820 LokSound 5 micro DCC "blank decoder", 8-pin NEM652, gauge: N, TT, H0 Only available at ESU LLC! 58823 LokSound 5 micro DCC "blank decoder", single wires, gauge: N, TT, H0 Only available at ESU LLC! 58828 LokSound 5 micro DCC "blank decoder", Next18, gauge: N, TT, H0 Only available at ESU LLC! 58810 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 8-pin NEM652, with Speaker 11x15mm, gauge: N, TT, H0 58813 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", single wires, with Speaker 11x15mm, gauge: N, TT, H0 58816 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", 6-pin NEM651, with Speaker 11x15mm, gauge: N, TT, H0 58818 LokSound 5 micro DCC/MM/SX/M4 "blank decoder", Next18, with Speaker 11x15mm, gauge: N, TT, H0 51993 Wire harness, 18-pin Next18 socket to open wires, 88mm, with heat shrink tube 51994 Adapter board, 18-pin Next-18 socket to NEM651 6-pin, Flex, 88mm, with heat shrink tube 51995 Adapter board, 18-pin Next-18 socket to NEM652 8-pin, Flex, 88mm, with heat shrink tube 51996 Adapter board, 18-pin Next-18 socket to Plux16

Regular price: CHF 115.00

In stock: 3 on the shelf, shipped within 1-3 days

LokPilot 5 DCC/MM/SX/M4 PLUX22 NEM658
ESU 59612
LokPilot 5 DCC/MM/SX/M4 PLUX22 NEM658

LokPilot 5 DCC/MM/SX/M4, PLUX22 NEM658, gauge H0 ,0 The LokPilot 5 is the most important representative of the LokPilot family and is suitable for almost all questions in locomotives of gauge H0 and 0. LokPilot 5 decoders are offered with all common interfaces. Modes The LokPilot 5 is a real multi-protocol decoder. He masters the data format DCC as well as Motorola®, Selectrix® and M4. In DCC format, 14 to 128 speed steps are as natural as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus®, the decoders log on to a suitable digital center fully automatically. It masters all DCC programming modes and, thanks to RailCom®, the CV values ​​on the main track can be read out with suitable control centers. Auxiliary registers exist for control centers that can only program CVs from 1-255. Motorola® users benefit from up to 28 speed steps with 255 addresses. Three additional Motorola® addresses enable the activation of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021. The M4 protocol enables automatic registration at mfx®-compatible control centers. All 32 possible function keys are offered here. The LokPilot 5 decoder recognizes the Märklin® braking distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with DC voltage is also possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two stations. The LokPilot 5 decoder can be used on analog DC and AC railways.The decoder switches between the operating modes fully automatically "on-the-fly". Usually nothing needs to be set. Features We know that you want your locomotives to be as realistic as possible. Therefore, we packed the LokPilot 5 with function outputs. Depending on the interface version, each LokPilot 5 decoder offers at least 10 amplified function outputs with 250mA output current each. In the versions with PluX22 or 21MTC interface, 4 outputs are added to control servos or logic level outputs. All important lighting functions are available. The brightness of each output can be set separately. The decoder masters the automatic pressing and detaching when uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The engine control of the LokPilot 5 has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors - the typical "hum" is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function enables the decoder to be automatically calibrated to the motor. With up to 1.5A motor current, the LokPilot 5 decoder provides enough juice even for older motors. Operational safety On request, a PowerPack can be connected to the LokPilot 5 to bridge dirty rail sections. Protection Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. Possible under Selectrix® operation. Programming must be carried out in DCC mode. Programming with "pure" Selectrix® devices is not possible. Click the image for a bigger view. Betriebsarten: NMRA/DCC mit 14, 28 und 128 Fahrstufen, DCC RailCom® DCC 2-stellige und 4-stellige Adressen (kurze und lange Adressen) Digital Motorola® (alt und neu), bis zu 255 Adressen im Motorola®-Betrieb Selectrix® Fahrbetrieb M4-Betrieb (Automatische Anmeldung an mfx®-kompatiblen Zentralen) Analog Gleichspannung (abschaltbar). Analog Wechselspannung (abschaltbar) Automatische Erkennung der Betriebsart und DCC-Fahrstufeneinstellung Unterstützung der Lenz® LG100, Märklin®, Roco® Bremsstrecken und ZIMO® HLU Befehle Unterstützung für ABC Bremsmodus und ABC-Pendelzugstrecke Falschfahrbit / Speicherung der Betriebszustände Intelligenter Programmiermodus mit Märklin® 6021® Rangiergang und Anfahr- und Bremsverzögerung per Taste schaltbar Fahrtreglerteil: 2,0 A Dauerbelastbarkeit Anschluss von Gleichstrom- Glockenanker- und Wechselstrommotoren (mit Permanentmagnet) Geräuschlose, motorschonende Ansteuerung mit bis zu 50 kHz Taktfrequenz Motorausgang gegen Überlast geschützt. Lastregelung der 5. Generation (abschaltbar) Funktionsausgänge: 10 verstärkte Funktionsausgänge Version mit 21MTC-Schnittstelle zusätzlich 2 Logiklevelausgänge sowie 2 weitere Logiklevelausgänge statt SUSI Version mit PluX22-Schnittstelle 2 Logiklevelausgänge statt SUSI 250mA Belastbarkeit pro verstärktem Ausgang Summenstrom aller Funktionsausgänge ca. 500mA. Ausgänge kurzschlussfest Belegung der Funktionsausgänge frei wählbar (function mapping) Dimensionen: 21,4mm x 15,5mm x 4,5mm Instruction manual Art.No. Delivery 59610 LokPilot 5 DCC/MM/SX/M4, 8-pin NEM652, gauge H0 ,0 59612 LokPilot 5 DCC/MM/SX/M4, PLUX22 NEM658, gauge H0 ,0 59616 LokPilot 5 DCC/MM/SX/M4, 6-pin NEM651, gauge H0 ,0 59619 LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660, gauge H0 ,0 59649 LokPilot 5 DCC/MM/SX/M4, 21MTC MKL, gauge H0 ,0

Regular price: CHF 39.00

In stock: 3 on the shelf, shipped within 1-3 days

LokPilot 5 DCC/MM/SX/M4 21-pin NEM660
ESU 59619
LokPilot 5 DCC/MM/SX/M4 21-pin NEM660

LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660, gauge H0 ,0 The LokPilot 5 is the most important representative of the LokPilot family and is suitable for almost all questions in locomotives of gauge H0 and 0. LokPilot 5 decoders are offered with all common interfaces. Modes The LokPilot 5 is a real multi-protocol decoder. He masters the data format DCC as well as Motorola®, Selectrix® and M4. In DCC format, 14 to 128 speed steps are as natural as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus®, the decoders log on to a suitable digital center fully automatically. It masters all DCC programming modes and, thanks to RailCom®, the CV values ​​on the main track can be read out with suitable control centers. Auxiliary registers exist for control centers that can only program CVs from 1-255. Motorola® users benefit from up to 28 speed steps with 255 addresses. Three additional Motorola® addresses enable the activation of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021. The M4 protocol enables automatic registration at mfx®-compatible control centers. All 32 possible function keys are offered here. The LokPilot 5 decoder recognizes the Märklin® braking distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with DC voltage is also possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two stations. The LokPilot 5 decoder can be used on analog DC and AC railways.The decoder switches between the operating modes fully automatically "on-the-fly". Usually nothing needs to be set. Features We know that you want your locomotives to be as realistic as possible. Therefore, we packed the LokPilot 5 with function outputs. Depending on the interface version, each LokPilot 5 decoder offers at least 10 amplified function outputs with 250mA output current each. In the versions with PluX22 or 21MTC interface, 4 outputs are added to control servos or logic level outputs. All important lighting functions are available. The brightness of each output can be set separately. The decoder masters the automatic pressing and detaching when uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The engine control of the LokPilot 5 has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors - the typical "hum" is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function enables the decoder to be automatically calibrated to the motor. With up to 1.5A motor current, the LokPilot 5 decoder provides enough juice even for older motors. Operational safety On request, a PowerPack can be connected to the LokPilot 5 to bridge dirty rail sections. Protection Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. Possible under Selectrix® operation. Programming must be carried out in DCC mode. Programming with "pure" Selectrix® devices is not possible. Click the image for a bigger view. Betriebsarten: NMRA/DCC mit 14, 28 und 128 Fahrstufen, DCC RailCom® DCC 2-stellige und 4-stellige Adressen (kurze und lange Adressen) Digital Motorola® (alt und neu), bis zu 255 Adressen im Motorola®-Betrieb Selectrix® Fahrbetrieb M4-Betrieb (Automatische Anmeldung an mfx®-kompatiblen Zentralen) Analog Gleichspannung (abschaltbar). Analog Wechselspannung (abschaltbar) Automatische Erkennung der Betriebsart und DCC-Fahrstufeneinstellung Unterstützung der Lenz® LG100, Märklin®, Roco® Bremsstrecken und ZIMO® HLU Befehle Unterstützung für ABC Bremsmodus und ABC-Pendelzugstrecke Falschfahrbit / Speicherung der Betriebszustände Intelligenter Programmiermodus mit Märklin® 6021® Rangiergang und Anfahr- und Bremsverzögerung per Taste schaltbar Fahrtreglerteil: 2,0 A Dauerbelastbarkeit Anschluss von Gleichstrom- Glockenanker- und Wechselstrommotoren (mit Permanentmagnet) Geräuschlose, motorschonende Ansteuerung mit bis zu 50 kHz Taktfrequenz Motorausgang gegen Überlast geschützt. Lastregelung der 5. Generation (abschaltbar) Funktionsausgänge: 10 verstärkte Funktionsausgänge Version mit 21MTC-Schnittstelle zusätzlich 2 Logiklevelausgänge sowie 2 weitere Logiklevelausgänge statt SUSI Version mit PluX22-Schnittstelle 2 Logiklevelausgänge statt SUSI 250mA Belastbarkeit pro verstärktem Ausgang Summenstrom aller Funktionsausgänge ca. 500mA. Ausgänge kurzschlussfest Belegung der Funktionsausgänge frei wählbar (function mapping) Dimensionen: 21,4mm x 15,5mm x 4,5mm Instruction manual Art.No. Delivery 59610 LokPilot 5 DCC/MM/SX/M4, 8-pin NEM652, gauge H0 ,0 59612 LokPilot 5 DCC/MM/SX/M4, PLUX22 NEM658, gauge H0 ,0 59616 LokPilot 5 DCC/MM/SX/M4, 6-pin NEM651, gauge H0 ,0 59619 LokPilot 5 DCC/MM/SX/M4, 21MTC NEM660, gauge H0 ,0 59649 LokPilot 5 DCC/MM/SX/M4, 21MTC MKL, gauge H0 ,0

Regular price: CHF 39.90

In stock: 3 on the shelf, shipped within 1-3 days

LokPilot 5 DCC PLUX22 NEM658 gauge H0 0
ESU 59622
LokPilot 5 DCC PLUX22 NEM658 gauge H0 0

LokPilot 5 DCC, PLUX22 NEM658, gauge H0 ,0 The LokPilot 5 DCC is the "twin brother" of the LokPilot 5. The two share almost all characteristics, however, the LokPilot 5 DCC is a pure DCC decoder and cannot be used on analog AC systems. This lack of flexibility comes with a cheaper price. LokPilot 5 decoders are offered with all common interfaces. Modes The LokPilot 5 DCC is a "pure-bred" DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus® the decoders register automatically with a suitable DCC system like the ESU CabControl. The decoder accepts all DCC programming modes and thanks to RailCom® the CV values ​​can be read on the main track with RailCom equipped DCC systems. For command stations that only program the CVs from 1-255 auxiliary CV registers exist. The LokPilot 5 DCC decoder recognizes the Märklin® braking sections as well as the ZIMO® HLU / ZACKCommands or the Lenz® ABC system. Also braking with DCC brake modules or with DC voltageis possible. It also stops with a Selectrix® brake diode. An ABC automatic shuttle trainenables automatic commuting between two train stations. The LokPilot 5 DCC decoder can be used on analog DC trains. The top speedcan be set separately. The decoder switches between the operating modes fully automatically "on-the-fly". Features We know that you want your locomotives to be as realistic as possible. Therefore we have the LokPilot 5DCC packed with function outputs. Depending on the interface version, each LokPilot offers 5 DCCDecoder at least 10 amplified function outputs with 250mA output current each. In the executionswith PluX22 or 21MTC interface there are 4 outputs to control servos orLogic level outputs added. All-important lighting functions are available. The brightness of each outputcan be set separately. The decoder masters automatic pushing and pullingwhen uncoupling for ROCO®, Krois® and Telex® couplings. Motor control The engine control of the LokPilot 5 DCC has been fundamentally improved again. A variably adjustablePWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors.Operation - The typical “hum” is a thing of the past. The load control now has up to10 CVs  which can be adjusted for difficult cases. The unique "Autotune" function enablesthe automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to 1.5A of motor current. Enough juice even for older motors. Operational safety On request, a PowerPack can be fitted to the LokPilot 5 DCC to bridge dirty rail sections. Protection Of course, all function outputs and the motor output are protected against overload. We want you to enjoy your decoder for as long as possible. Click the image for a bigger view. Betriebsarten: NMRA/DCC mit 14, 28 und 128 Fahrstufen, DCC RailCom® DCC 2-stellige und 4-stellige Adressen (kurze und lange Adressen) Analog Gleichspannung (abschaltbar). Automatische Erkennung der Betriebsart und DCC-Fahrstufeneinstellung Unterstützung der Lenz® LG100, Märklin®, Roco® Bremsstrecken und ZIMO® HLU Befehle Unterstützung für ABC Bremsmodus und ABC-Pendelzugstrecke Falschfahrbit / Speicherung der Betriebszustände Rangiergang und Anfahr- und Bremsverzögerung per Taste schaltbar Fahrtreglerteil: 2,0 A Dauerbelastbarkeit Anschluss von Gleichstrom- Glockenanker- und Wechselstrommotoren (mit Permanentmagnet) Geräuschlose, motorschonende Ansteuerung mit bis zu 50 kHz Taktfrequenz Motorausgang gegen Überlast geschützt. Lastregelung der 5. Generation (abschaltbar) Funktionsausgänge: 10 verstärkte Funktionsausgänge Version mit 21MTC-Schnittstelle zusätzlich 2 Logiklevelausgänge sowie 2 weitere Logiklevelausgänge statt SUSI Version mit PluX22-Schnittstelle 2 Logiklevelausgänge statt SUSI 250mA Belastbarkeit pro verstärktem Ausgang Summenstrom aller Funktionsausgänge ca. 500mA. Ausgänge kurzschlussfest Belegung der Funktionsausgänge frei wählbar (function mapping) Dimensionen: 21,4mm x 15,5mm x 4,5mm Instruction manual Art.No. Delivery 59620 LokPilot 5 DCC, 8-pin NEM652, gauge H0 ,0 59622 LokPilot 5 DCC, PLUX22 NEM658, gauge H0 ,0 59626 LokPilot 5 DCC, 6-pin NEM651, gauge H0 ,0 59629 LokPilot 5 DCC, 21MTC NEM660, gauge H0 ,0 59659 LokPilot 5 DCC, 21MTC MKL, gauge H0 ,0

Regular price: CHF 38.00

In stock: 3 on the shelf, shipped within 1-3 days
