Signals

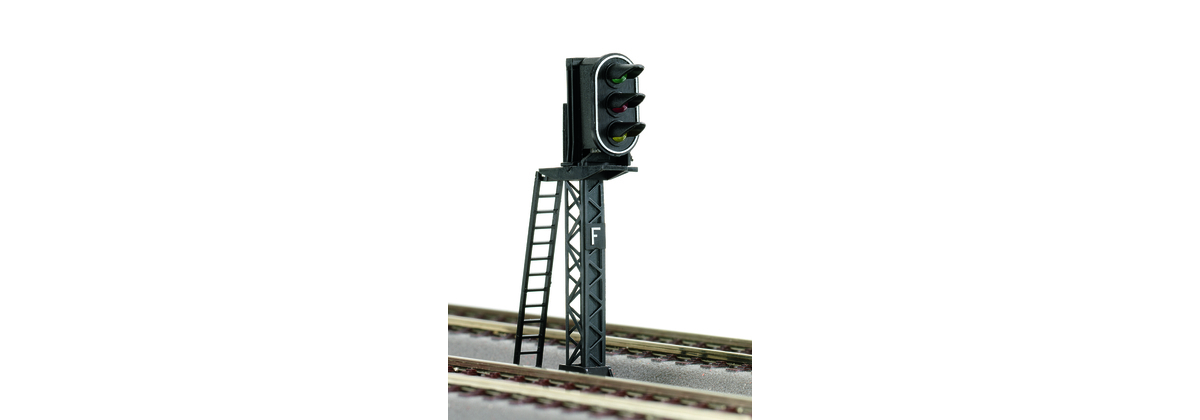

Triplicated aspect signal of the SNCF. The signal is factory-equipped with the third, orange LED in conformity with the SNCF signal manual. Owing to the major difference in the meaning of the signal illustrations, please pay heed to the information in the operating instructions.

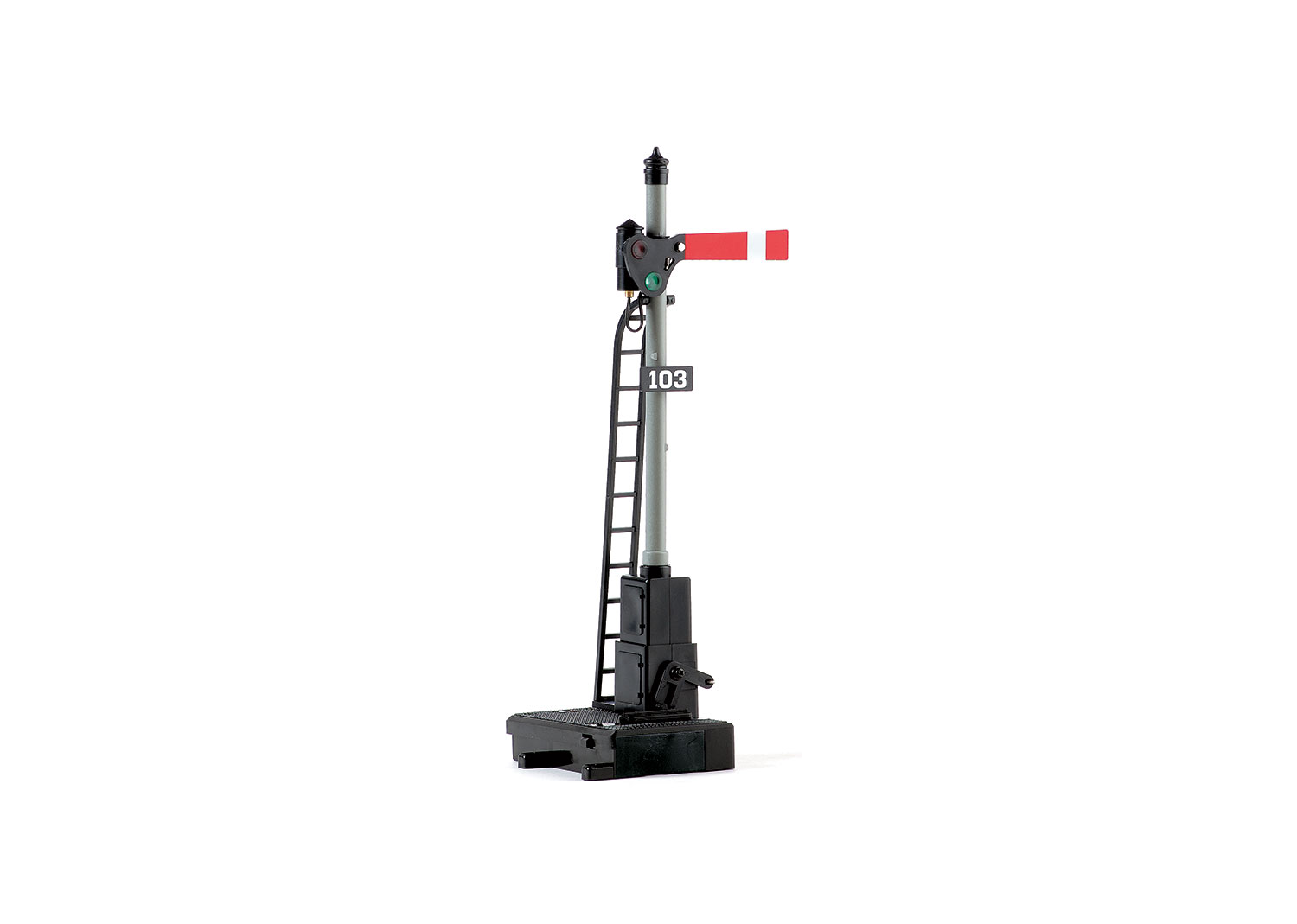

These simple semaphore signals could be found in earlier times on many American railways. The prototypical model is equipped with an electrically operated semaphore arm and signal lamps that change colour to indicate "Go" and "Stop". With an LGB signal drive. Easy assembly and wiring. For use with the LGB 51755 or similar. Height: 220 mm.

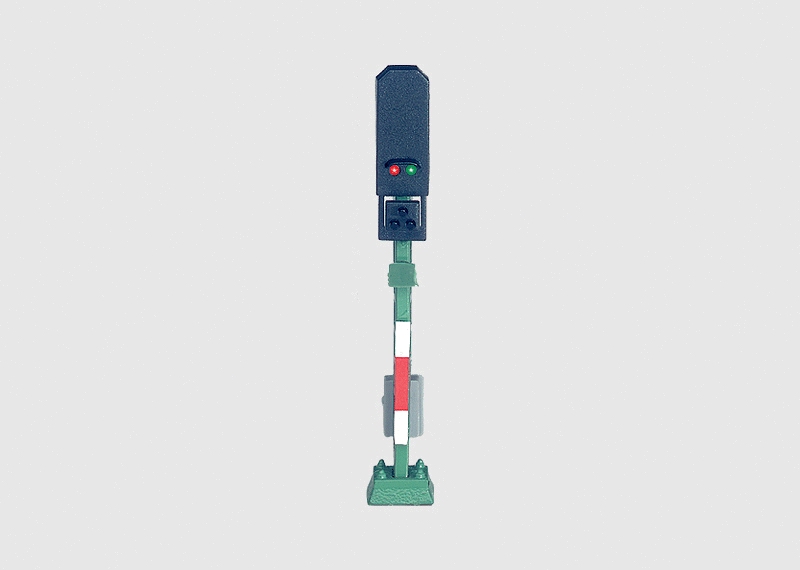

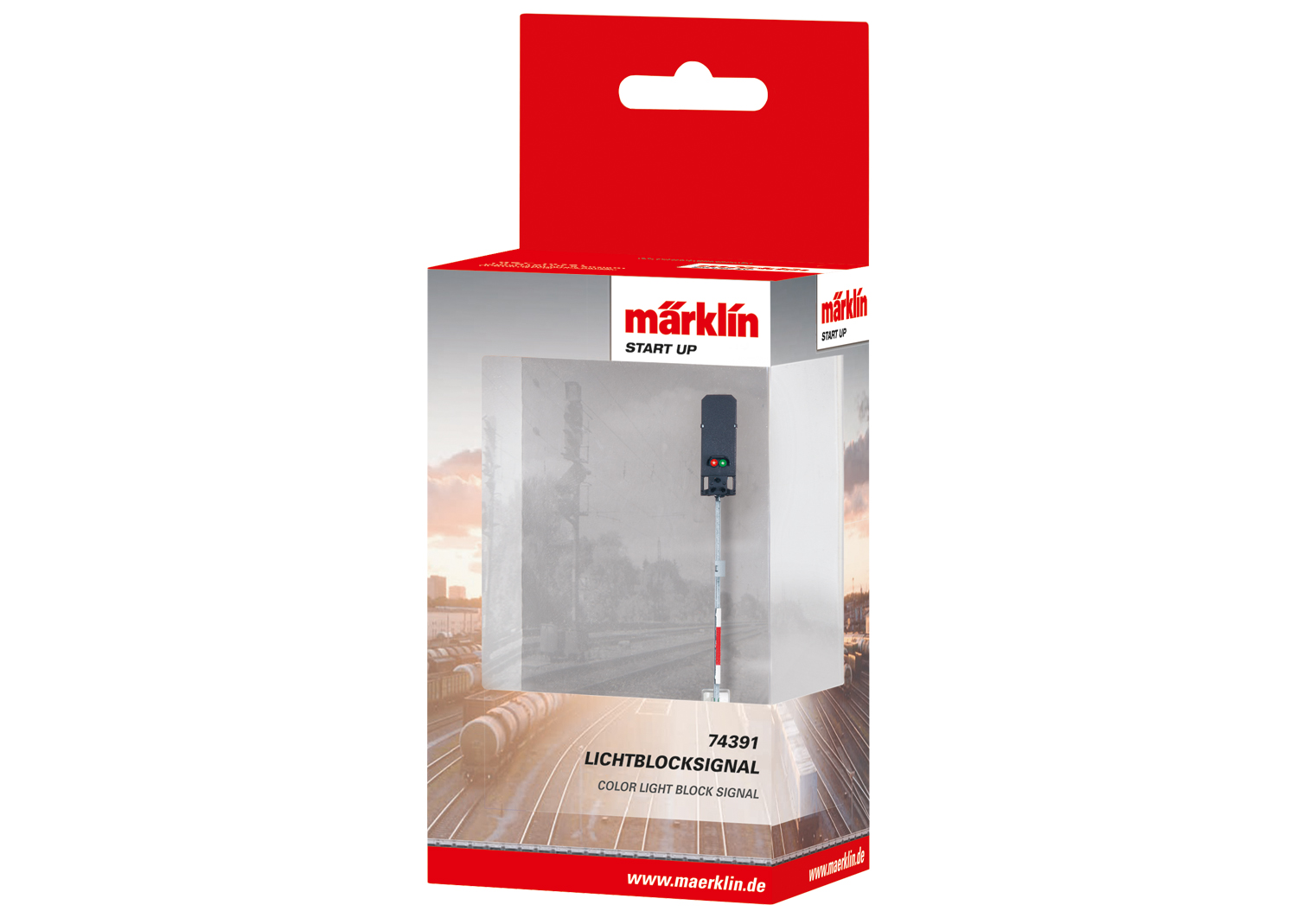

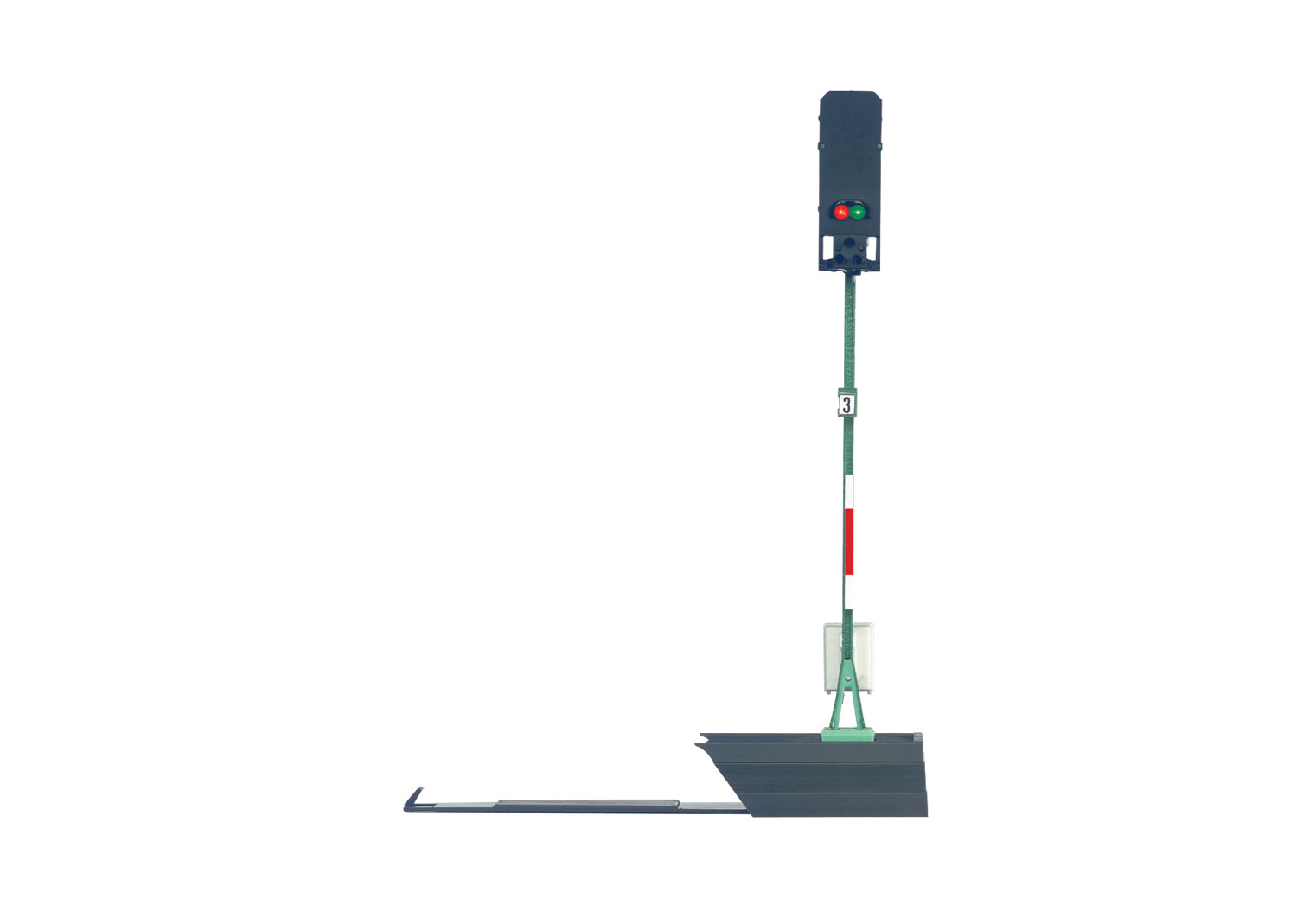

Model Simple block signal for use on the line. Change from Hp0 (red) to Hp1 (green). Control of the traction current by means of the 72751 control panel. Maintenance-free LEDs. Height without the base approx. 78 mm. Matching control panel 72751. The 74391 signal cannot be controlled with other control panels! Highlights Use as a main signal or as a block signal on the line Height without the base approx. 8 cm The 72751 control panel is required for control Note Can also be used in digital operation with the m84 decoder (60841).

2 positions: "Stop" (Hp0) and "Proceed" (Hp1). LED lighting. Height 34 mm.

Prototype Distant signal in the standard design of the German Federal Railway (DB). Distant signal with 3 aspects: "Expect stop" - yellow/yellow (Vr0), "Expect clear" - green/green (Vr1) and "Expect slow speed" - green/yellow (Vr2). Model With integrated signal electronics. Connection to the separate signal decoder of the associated main signal. Can be used for all main signals. All functions are controlled with the signal decoder of the main signal. For digital operation, the configuration and the address are assigned by the signal decoder of the main signal. Height without the base 61 mm. Highlights Distant signal can be used for all main signals The associated signal aspects are assigned automatically when it is connected

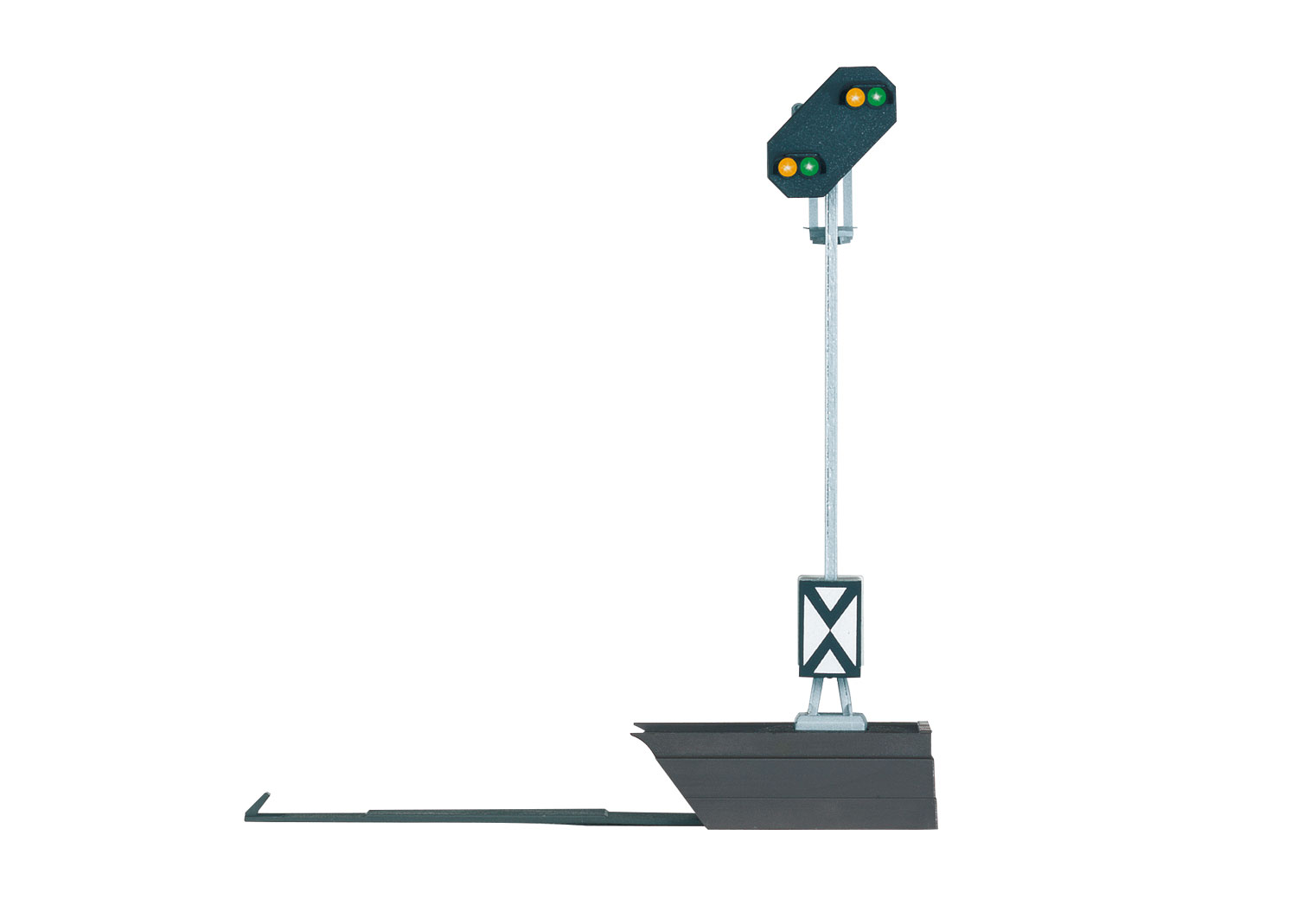

Model Simple distant signal for use ahead of main signals. Change from Vr0 (yellow/yellow) to Vr1 (green/green). Control of the traction current by means of the 72751 control panel. Maintenance-free LEDs. Height without the base approx. 61 mm. Matching control panel 72751. The 74380 signal cannot be controlled with other control panels! Highlights Distant signal for use ahead of the 74391 main signal Height without the base approx. 6 cm The 72751 control panel is required for control Note Can also be used in digital operation with the m84 decoder (60841).

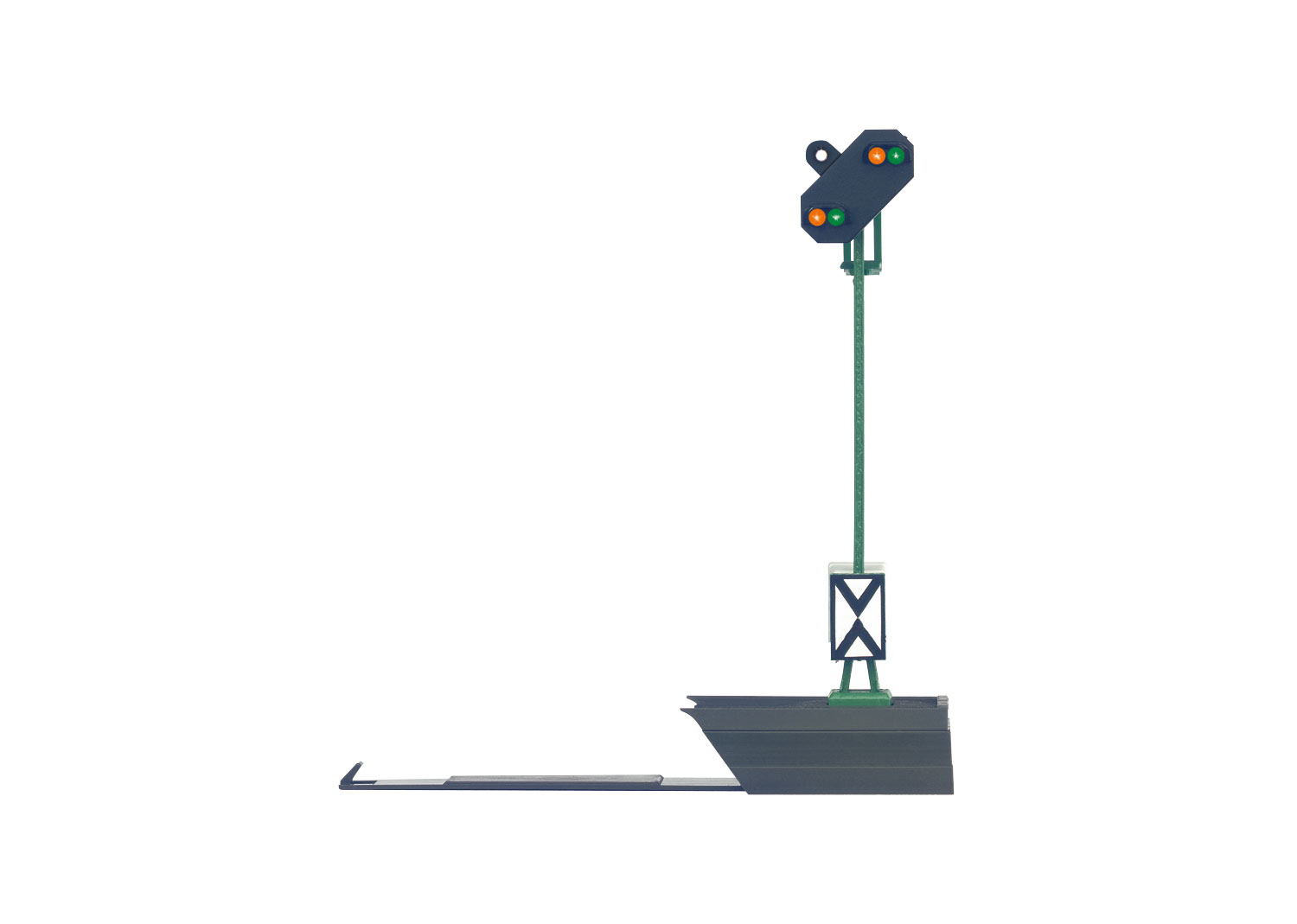

Prototype Distant signal with a supplementary light in the standard design of the German Federal Railway (DB). Distant signal with 3 aspects: "Expect stop" - yellow/yellow (Vr0), "Expect clear" - green/green (Vr1) and "Expect slow speed" - green/yellow (Vr2). The white supplementary light means that the distance between the distant signal and the main signal is shorter than the regular braking distance. Model With integrated signal electronics. Connection to the separate signal decoder of the associated main signal. Can be used for all main signals. All functions are controlled with the signal decoder of the main signal. For digital operation, the configuration and the address are assigned by the signal decoder of the main signal. Height without the base 61 mm. Highlights Distant signal can be used for all main signals The associated signal aspects are assigned automatically when it is connected

3 positions: "Stop" (Hp0), "Proceed" (Hp1) and "Slow speed" (Hp2). LED lighting. Height 34 mm.

4 positions: "Stop" (Hp00), "Proceed" (Hp1), "Slow speed" (Hp2) and "Train stop, shunting permitted" (Hp00/Sh1). LED lighting. Height 34 mm.

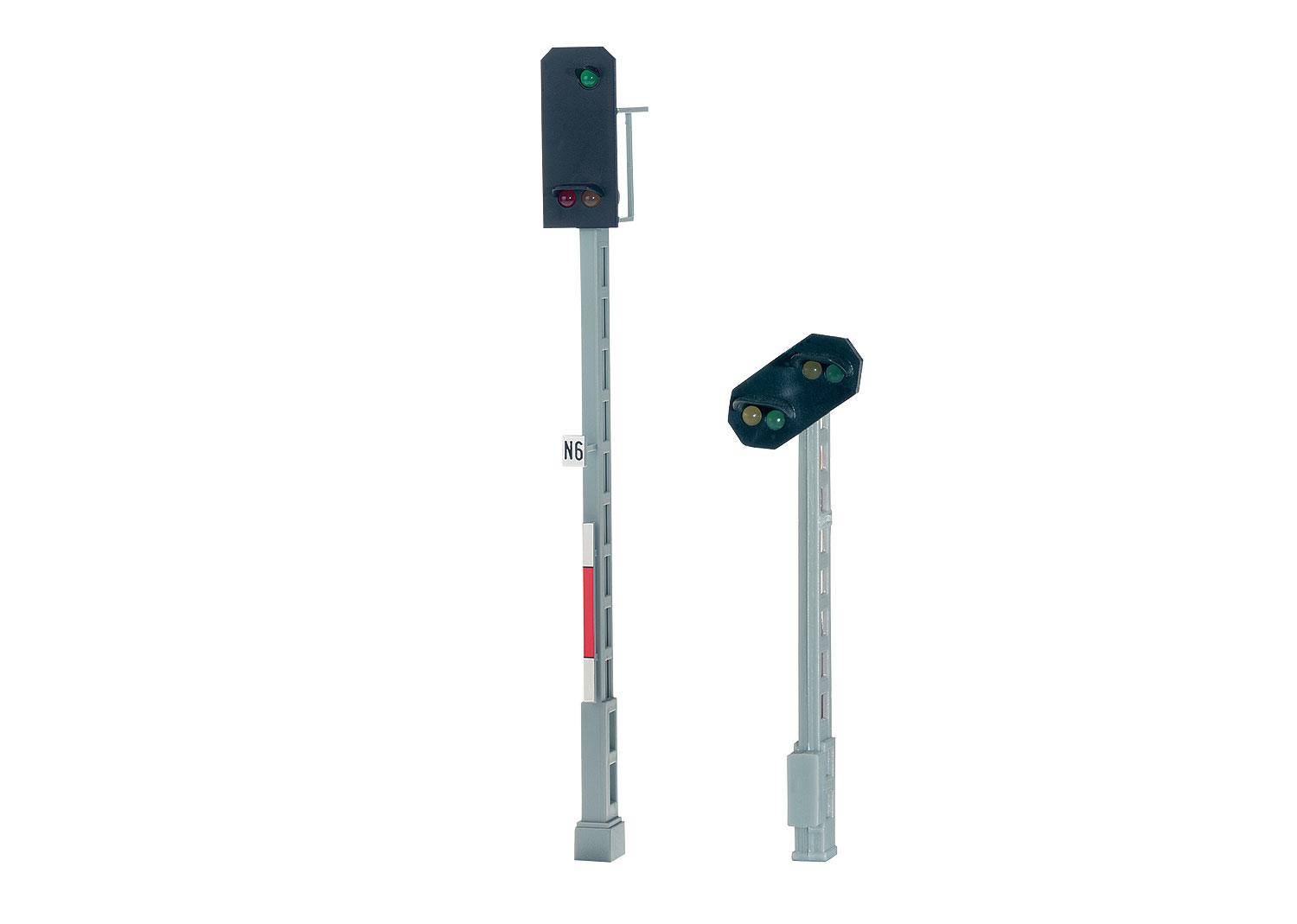

Set consisting of a main signal with one green, one red and one yellow LED for indicating the signal aspects stop (Hp0), proceed (Hp1) and proceed at reduced speed (Hp2), and a matching separate distant signal. Both signals without a drive. Depending on the application, an H0 drive or a Märklin digital decoder can be used. The colour light main signal and the colour light distant signal are not available separately.

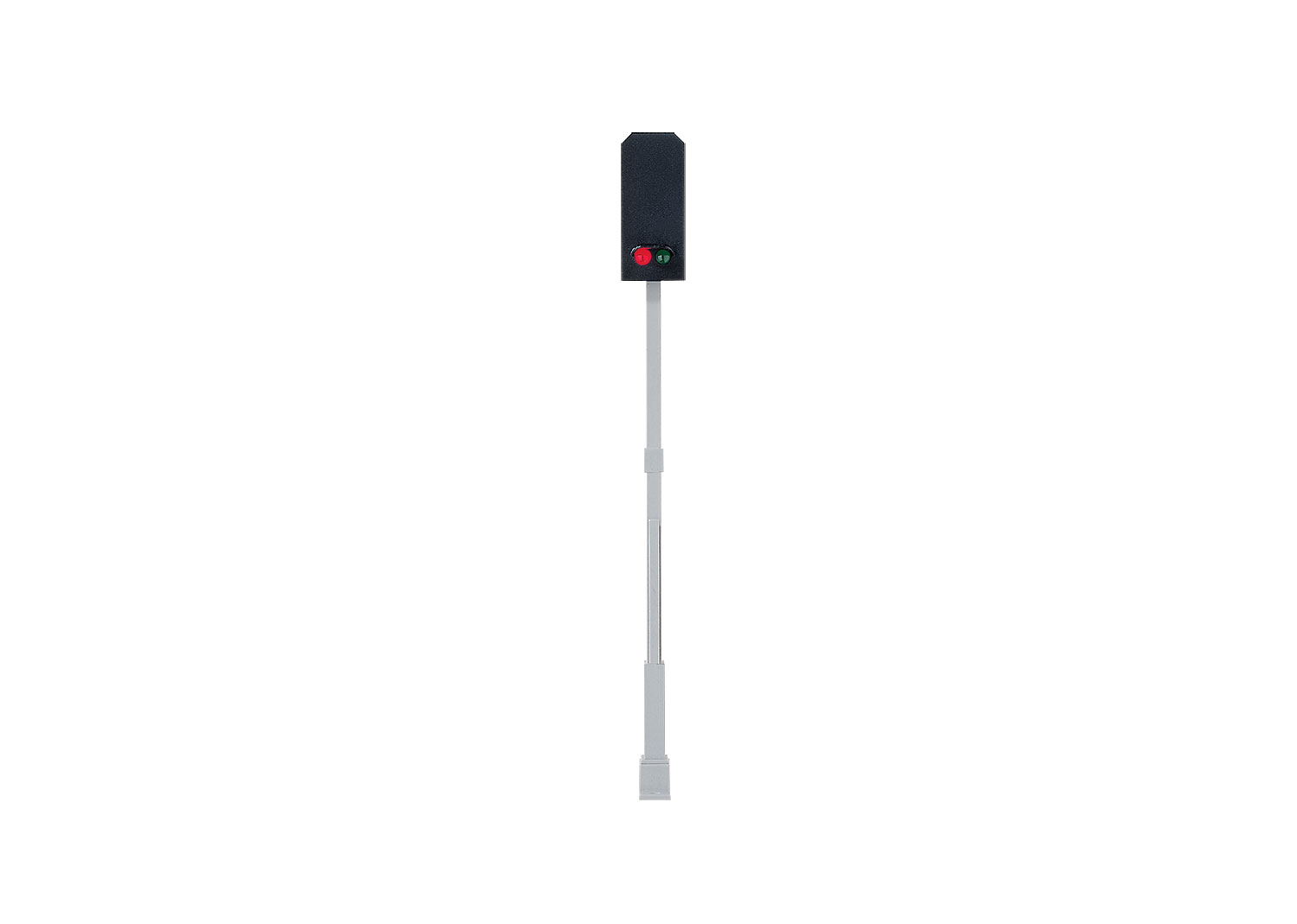

Changes from red (Hp0) to green (Hp1). Lighting by means of LEDs. 16 volt operating voltage. The signal is supplied without a drive. Either the universal remote switch (7244 or 72441) or the m 84 decoder (60842) can be used as the drive.

Prototype Block signal in the standard design of the German Federal Railway (DB). 2 aspects: "Stop" - red (Hp0) and "Clear" - green (Hp1). Model With integrated signal electronics and 1 separate signal decoder. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation. There are connections on the signal decoder for train control and for 1 distant signal. Height without the base 78 mm. Highlights Block signal for use on the line Matching distant signal separately as item no. 76480 and 76481 or on the signals item no. 76495 and 76496

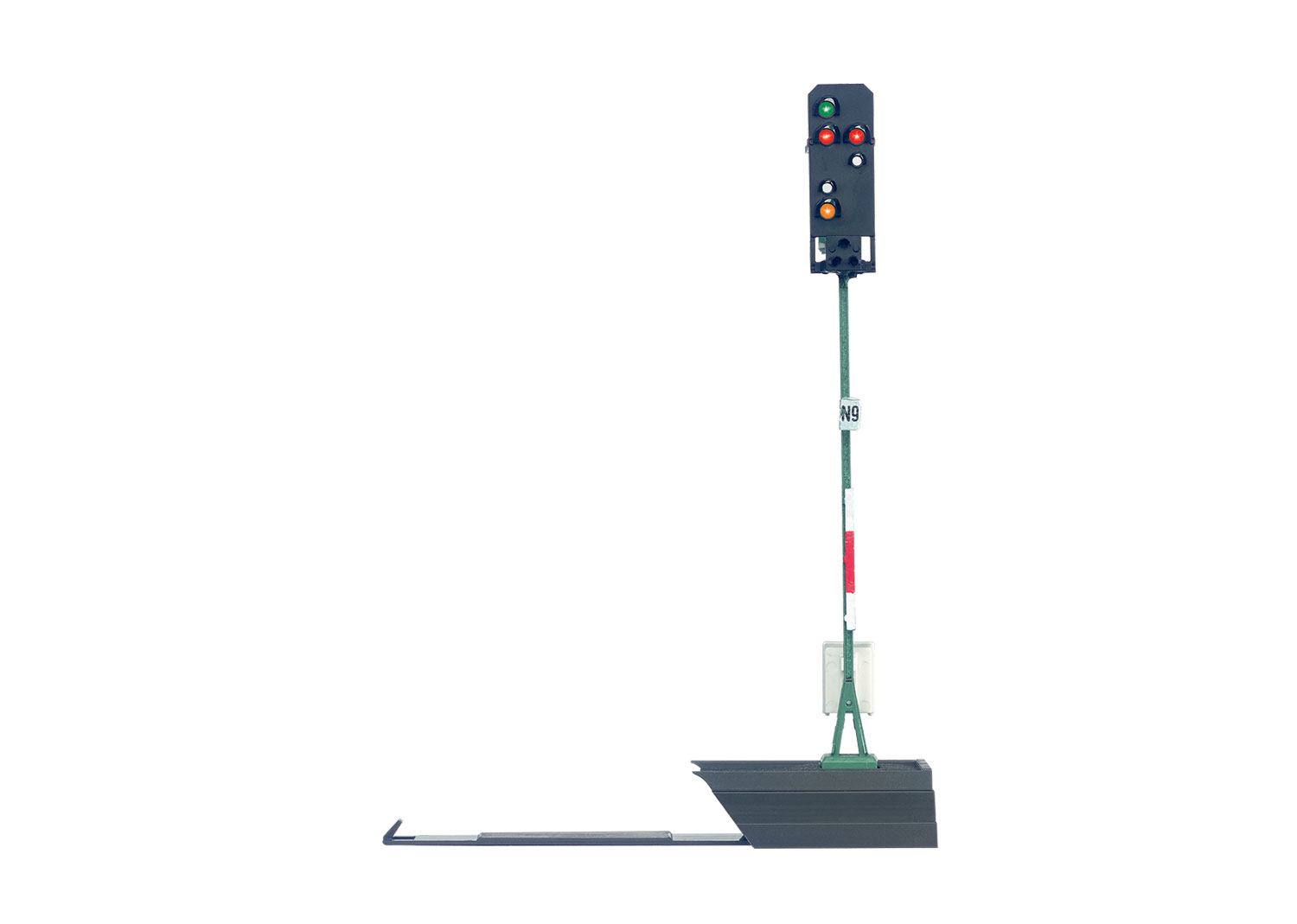

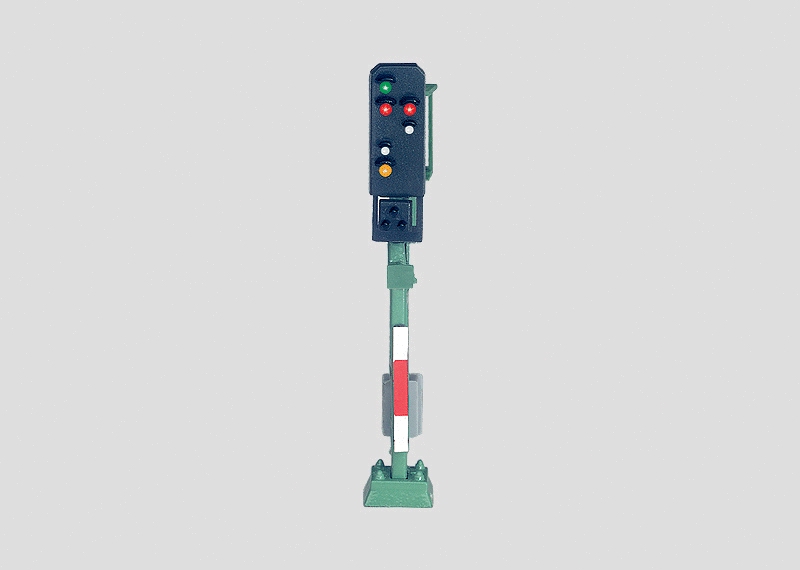

Prototype Exit signal in the standard design of the German Federal Railway (DB). 4 aspects: "Stop" - red/red (Hp00), "Clear" - green (Hp1) and "Slow speed" - green/yellow (Hp2) as well as "Stop for trains, shunting permitted" - red/white/white (Hp0/Sh1). Model With integrated signal electronics and 1 separate signal decoder. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation. There are connections on the signal decoder for train control and for 1 distant signal. Height without the base 78 mm. Highlights Exit signal for use in stations Matching distant signal separately as item no. 76480 and 76481 or on the entry signal item no. 76497 Integrated ground signal with a white light

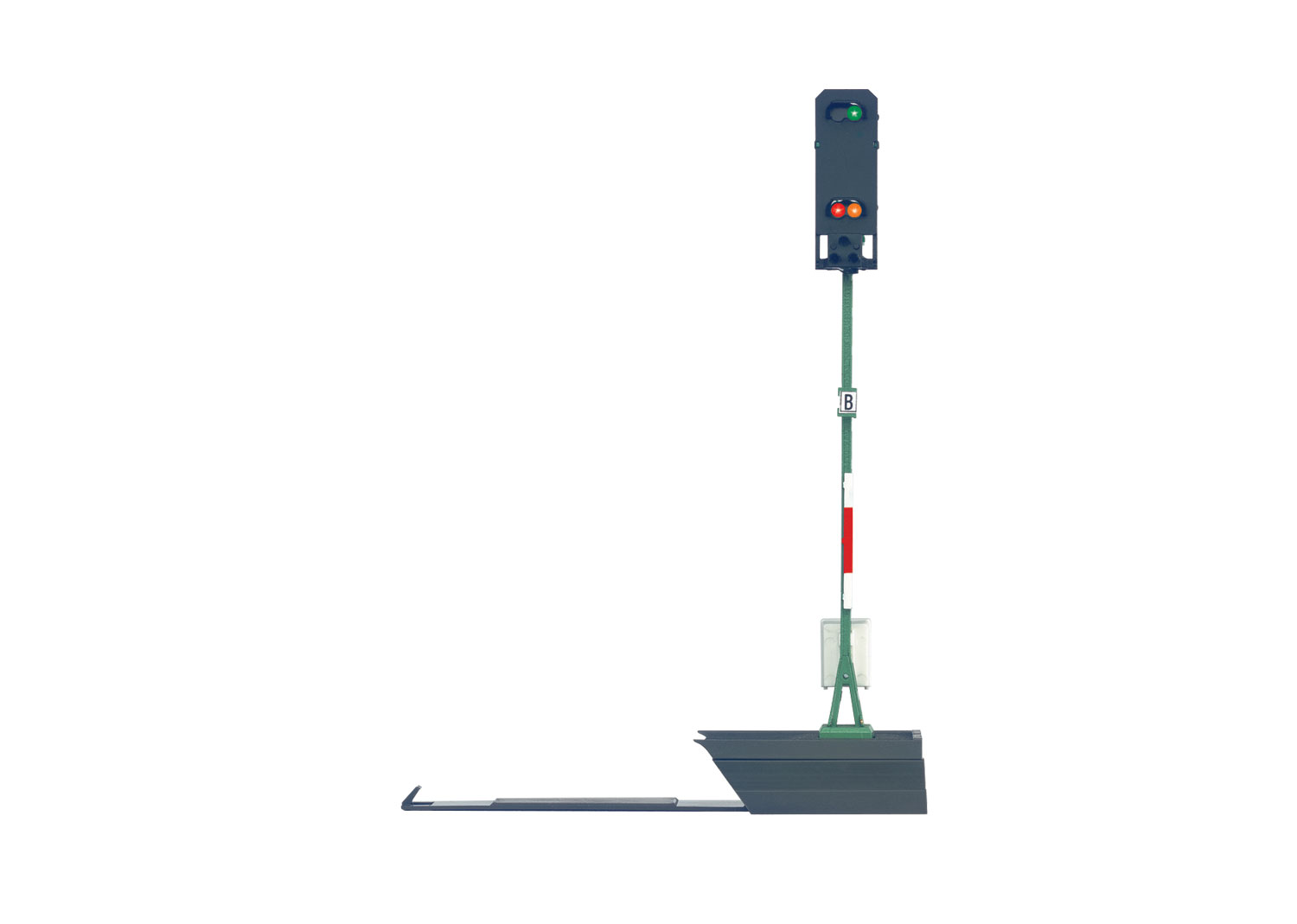

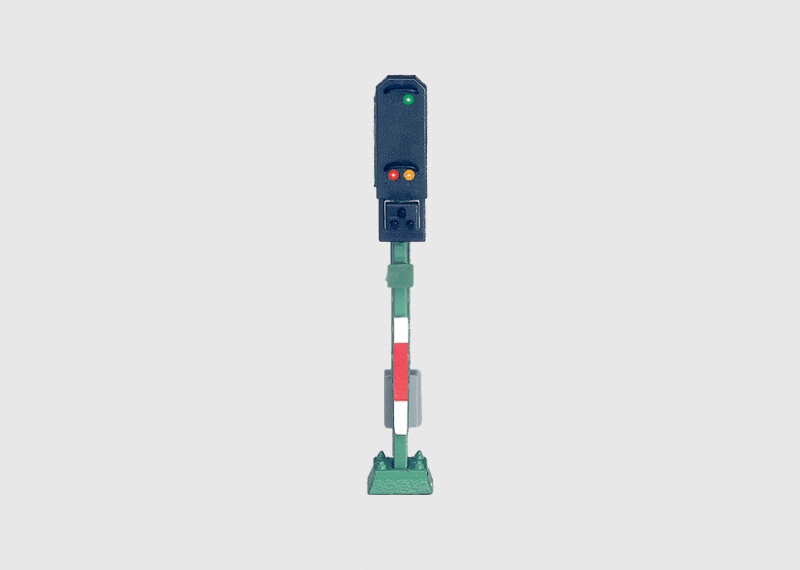

Prototype Entry signal in the standard design of the German Federal Railway (DB). 3 aspects: "Stop" - red (Hp0), "Clear" - green (Hp1) and "Slow speed" - green/yellow (Hp2). Model With integrated signal electronics and 1 separate signal decoder. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation. There are connections on the signal decoder for train control and for 1 distant signal. Height without the base 78 mm. Highlights Entry signal for use ahead of stations Matching distant signal separately as item no. 76480 and 76481 or on the signals item no. 76495 and 76496

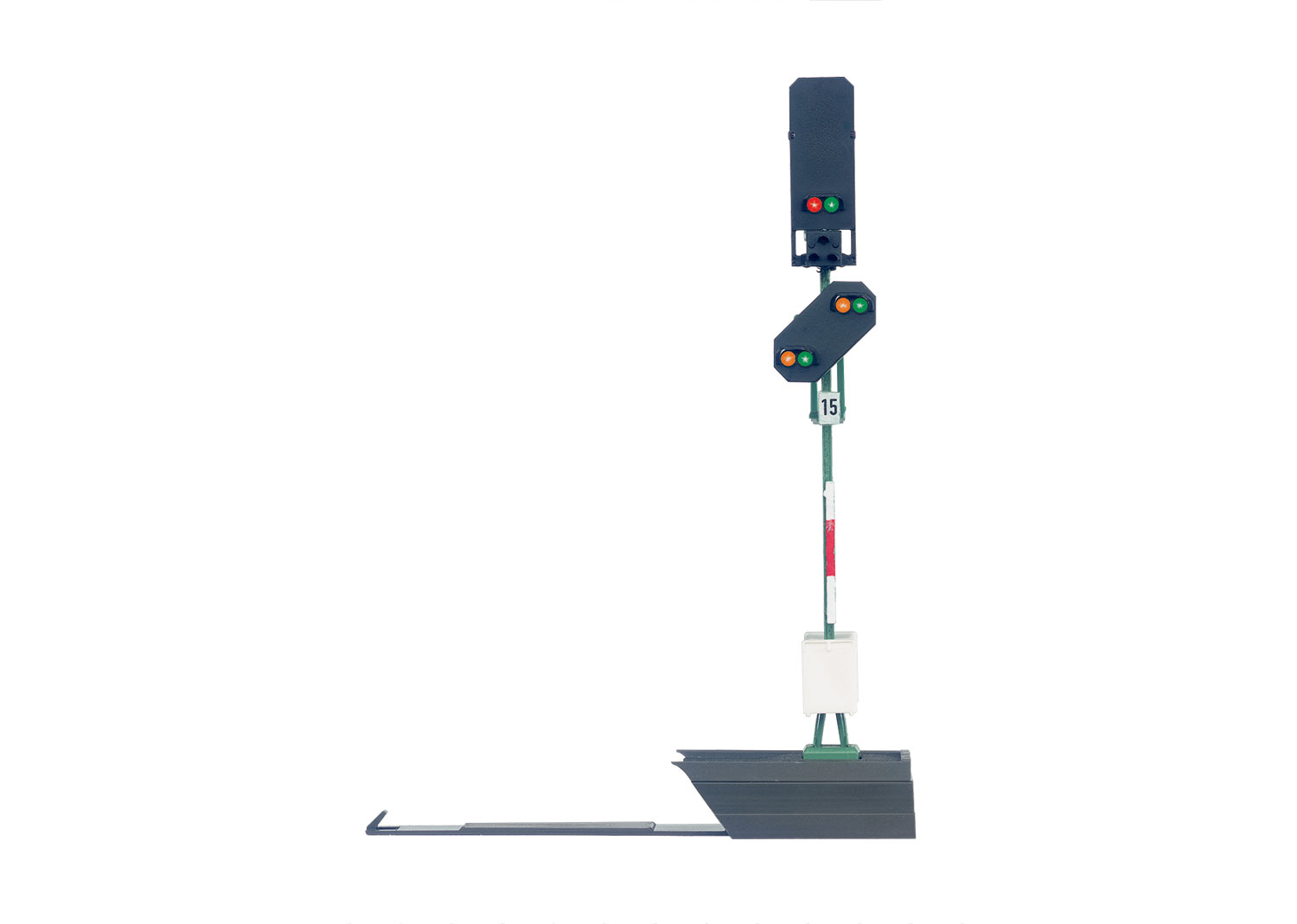

Prototype Block signal with a distant signal in the standard design of the German Federal Railway (DB) on the same signal mast. Main signal with 2 aspects as with item no. 76491. Distant signal with 3 aspects as with item no. 76480 / 76481. Model With 2 integrated signal electronics units and 1 separate signal decoder. The distant signal can be used for all main signals. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the addresses for both signals can be assigned and tested before installation. There are connections on the signal decoder for train control and for 1 additional distant signal. Height without the base 78.0 mm. Highlights 2 signals on one mast without an additional connection Block signal for use on the line Distant signal for use ahead of a block signal or an entry signal

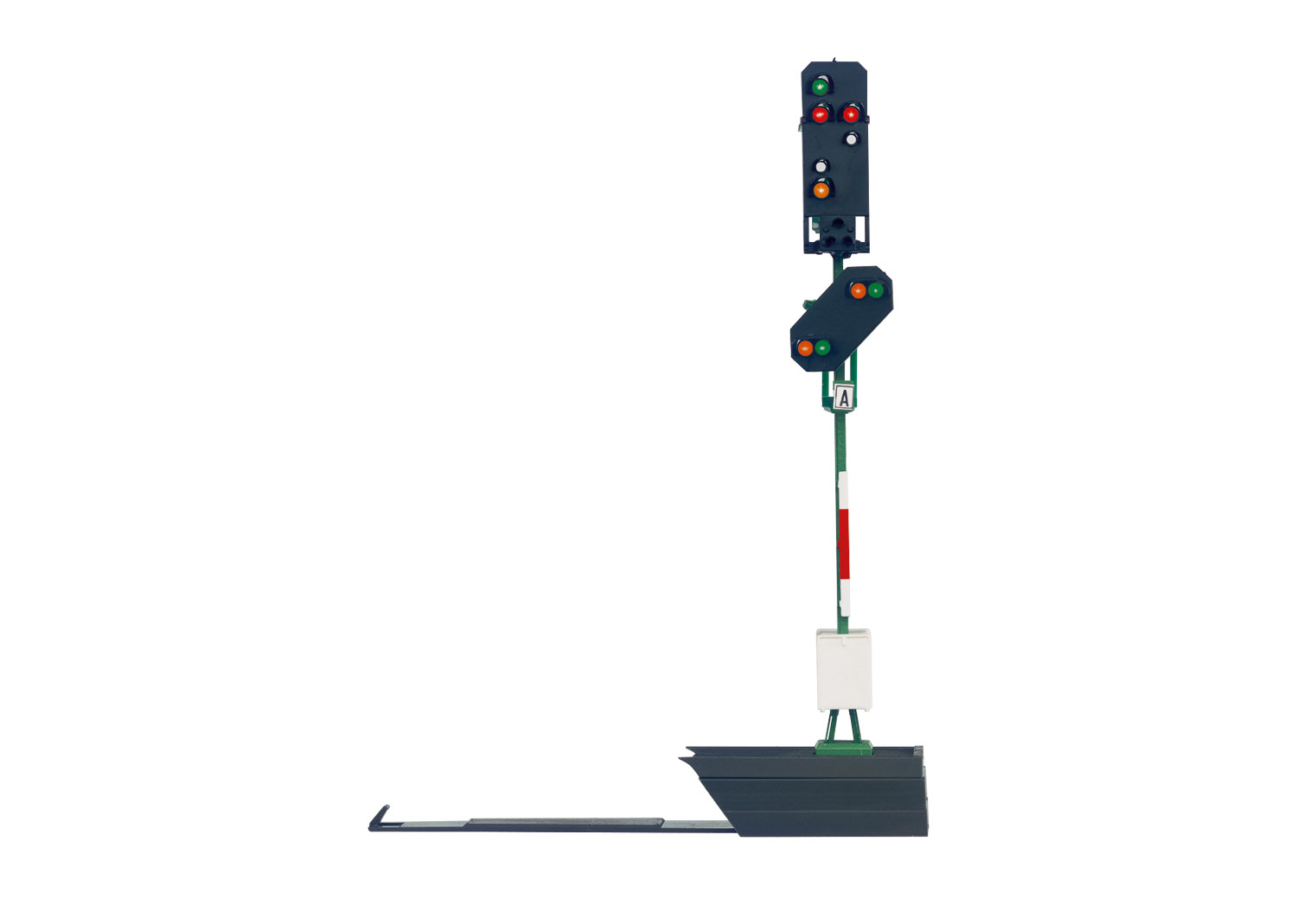

Prototype Exit signal with a distant signal in the standard design of the German Federal Railway (DB) on the same signal mast. Main signal with 4 aspects as with item no. 76494. Distant signal with 3 aspects as with item no. 76480 / 76481. Model With 2 integrated signal electronics units and 1 separate signal decoder. The distant signal can be used for all main signals. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the addresses for both signals can be assigned and tested before installation. There are connections on the signal decoder for train control and for 1 additional distant signal. Height without the base 78.0 mm. Highlights 2 signals on one mast without an additional connection Exit signal for use at the end of a station or at the entrance to the main line Distant signal for use ahead of a block signal or an entry signal

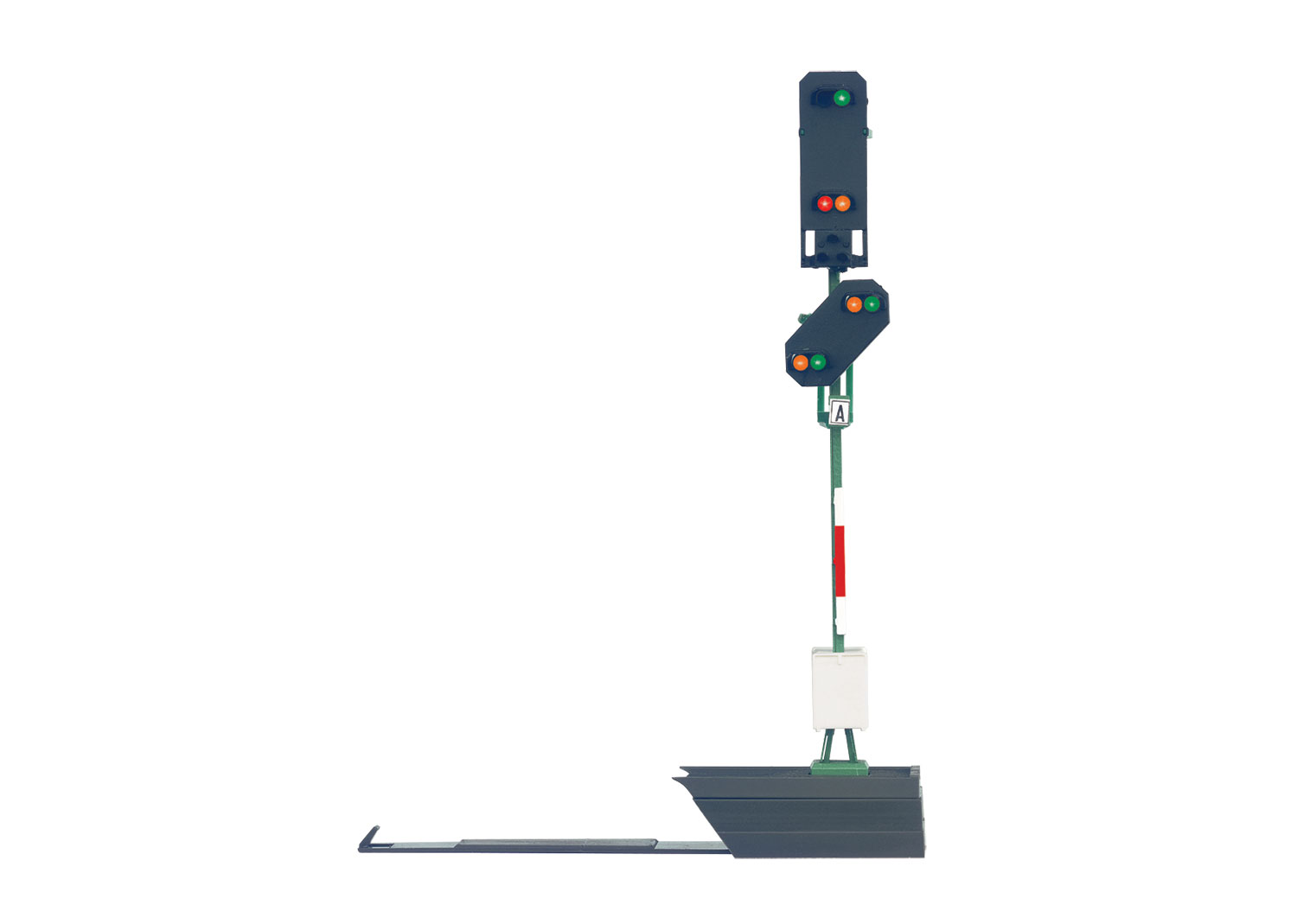

Prototype Entry signal with a distant signal in the standard design of the German Federal Railway (DB) on the same signal mast. Main signal with 3 aspects as with item no. 76493. Distant signal with 3 aspects as with item no. 76480 / 76481. Model With 2 integrated signal electronics units and 1 separate signal decoder. The distant signal can be used for all main signals. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the addresses for both signals can be assigned and tested before installation. There are connections on the signal decoder for train control and for 1 additional distant signal. Height without the base 78.0 mm. Highlights 2 signals on one mast without an additional connection Entry signal for use ahead of stations Distant signal for use ahead of an exit signal

Prototype Ground signal in the standard design of the German Federal Railway (DB). Dwarf signal without a mast. 2 aspects: "Stop, no movement permitted" - red/red (Sh0) and "Movement permitted" - white/white (Sh1). Model With integrated signal electronics and 1 separate signal decoder. Plug contact on the narrow foot of the signal head. Signal head with small sun visors. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation. There are connections on the signal decoder for train control. Height without the base 10.0 mm. Highlights Ground signal for use in the shunting area Signal head on a prototypically narrow stand Sh1 aspect correctly with 2 white lights

Prototype Ground signal in the standard design of the German Federal Railway (DB). High signal with a tubular mast. 2 aspects: "Stop, no movement permitted" - red/red (Sh0) and "Movement permitted" - white/white (Sh1). Model With integrated signal electronics and 1 separate signal decoder. All functions can be controlled with the associated signal decoder in the digital system or with the 72760 control panel on conventional layouts. The signal decoder can be installed under the C track or under the layout. For digital operation, the configuration and the address can be assigned and tested before installation. There are connections on the signal decoder for train control. Height without the base 50.0 mm. Highlights Ground signal for use in the shunting area Prototypically thin tubular mast Sh1 aspect correctly with 2 white lights

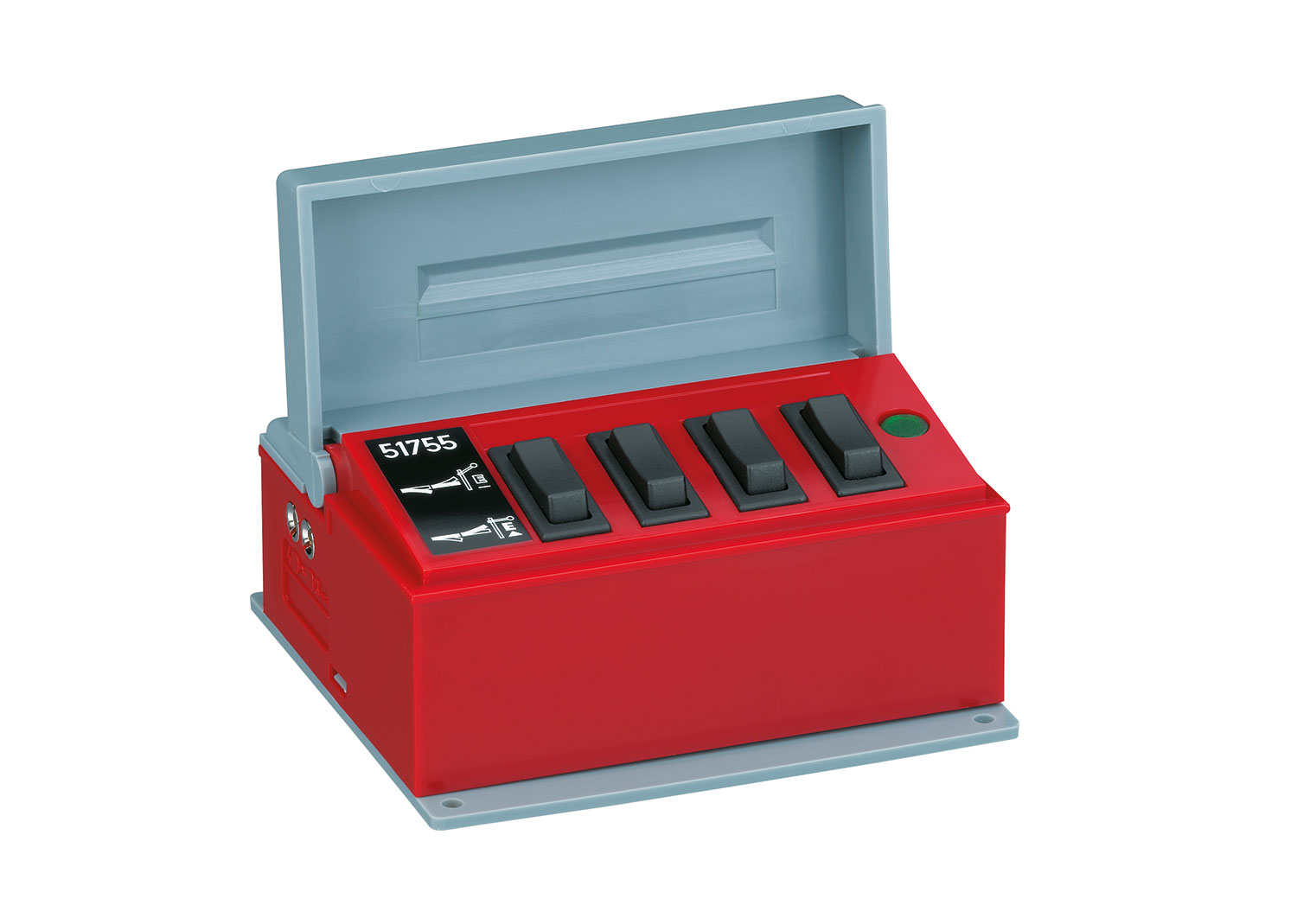

With the control panel you can operate up to four LGB points, signals, uncoupler tracks, or other accessories. Each momentary rocker switch operates one accessory item. The control panel is connected by means of the terminals on the back to an AC power source (18 V). When using a switched-mode power supply (51090 or 51985), the 60130 Converter is also required. An LED indicates whether the control panel is being supplied with power. Colour-coded terminals on the back make the connections easier. With stickers for marking the switch assignments. 126 x 116 x 66 mm. Replaces the 51750 item.

DB Ks distant signal in N scale. The compact black screen has a wide side hood housing two lights; the diagram shows green and yellow. The green lattice mast stands on a grey base and carries a white plate with a black cross plus a light-coloured box; a light metal railing is fitted beside the screen. The views show the signal lit once in green and once in yellow.

DB KS distant signal in N scale. The short black signal head with two optics and hoods is mounted on a green mast with a white platform and railing, a side ladder, a white base and a white box. A white plate with a black cross is fixed to the mast. The diagram shows two lights side by side, green and yellow; the views show each of them lit in turn.

DB KS distant signal with Zs1, N scale. The short black signal head with hoods is mounted on a green mast with a white platform and railing, a side ladder, a white base and a white box; a white plate with a black cross is fixed to the mast. The diagram shows a white light at the top and a green and a yellow light side by side below it. The views show the upper light lit together with the green light and then with the yellow light.

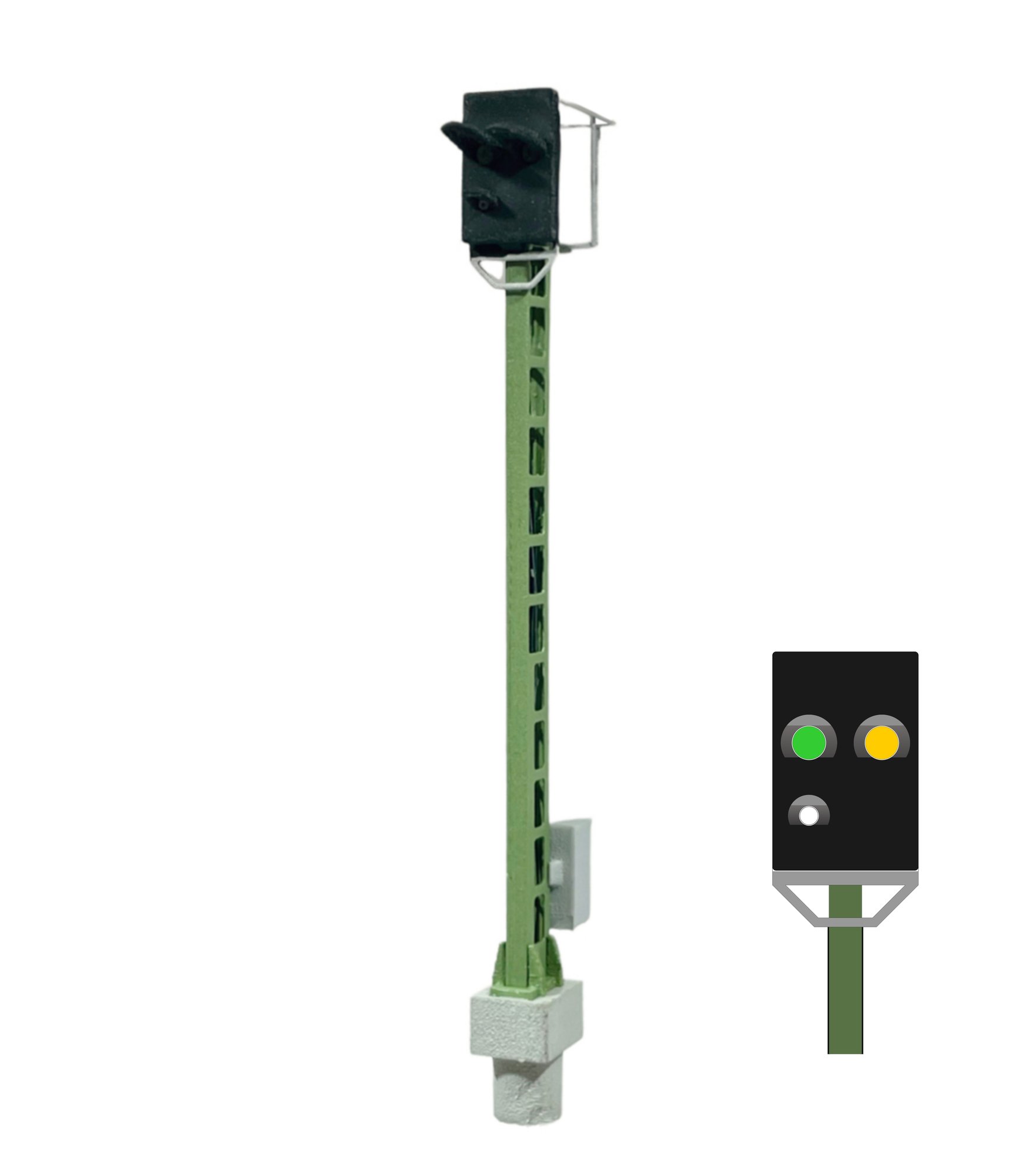

DB KS distant signal repeater in N scale. The black signal head with hoods sits on a green openwork mast on a white base, with a white box fitted to the mast. The accompanying diagram shows two lights side by side (green and yellow) plus a white light below. The further views show the green light and then the yellow light lit.
