Decoders

Sometimes, the locomotive is still equipped with an "old" 6-pin interface compliant with NEM 651. Using this flexible PCB, which can be folded and cut to length almost at will, you can easily install a modern decoder with a Next18 interface.

Due to space constraints, some HO locomotives with the "old" 8-pin NEM-652 interface cannot accommodate a standard HO decoder.

This adapter cable allows decoders with a Next18 interface to be hardwired.

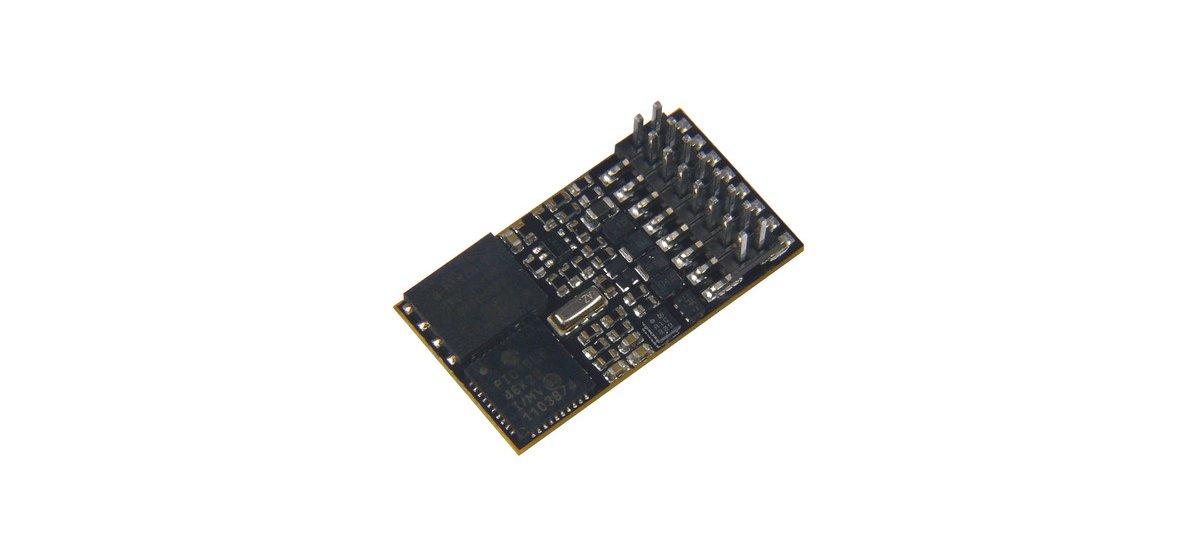

Some N or TT scale models are equipped with a PluX16 interface.

With the Servo Extension Cable you are able to lengthen your Precision Servo Motor by up to 75cm.

Suitable for Gauge H0e, TT and N. The decoder is equipped with the RailCom function. Maximum motor current: 0.7 A. For further technical specification, see the spec sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

For converting Märklin locomotives with a built-in universal / field coil motor. The märklin LokDecoder Allstrom supports the mfx, MM1, MM2 and DCC digital formats. Particularly powerful function outputs for old Telex couplers, light bulbs and smoke generators. The classic unregulated running characteristics under different load conditions are retained on the "Old- und Youngtimer" locomotives retrofitted with this decoder.

For professionals in digital model railroading there is a new adapter board. This makes installation easier and safer. First all wires are connected to the soldering points of the adapter board. All contact points (terminals) are present on both - top and bottom.  After that the LokSound XL decoder is plugged on with the multi-pin connector. Finished. Finally you can remove and reinsert your decoder at any time.

Model Adapter board for plugging the new 55029 large-scale decoder into the Märklin 60971 decoder programmer. Easy connection to a PC/laptop. In addition, the Märklin Decoder Tool software is required, which can be conveniently downloaded from the Märklin homepage (www.maerklin.de under Service/Downloads/Nachrüstdecoder/mLD3/mSD3). It can be used to easily transfer existing or self-recorded sounds; other settings such as maximum speed, braking behaviour, etc. can also be programmed very easily and quickly with it. Note The Märklin 60971 decoder programmer is also required. It is not included.

Suitable for Gauge H0e, TT and N. The decoder is equipped with the RailCom function. Maximum motor current: 0.8 A. Wire length: approx. 30 mm. For further technical specification, see the spec sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

Suitable for Gauge H0e, TT and N. The decoder is equipped with the RailCom function. Maximum motor current: 0.8 A. Length of pigtail: 35 mm. For further technical specification, see the spec sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

Suitable for Gauge H0e, TT and N. The decoder is equipped with the RailCom function. Maximum motor current: 0.7 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of the Lenz GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

Sound decoder with wires and 8-pole plug. Suitable for Gauge H0. The decoder is equipped with the RailCom function. Maximum motor current: 1.2 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. This sound decoder is equipped with a pre-installed Zimo sound (sound collection). You will find an extensive list of questions/answers that are frequently posed to us in Chapter 5 of this Zimo manual .

Sound decoder with wires and 8-pole plug. Suitable for Gauge H0. The decoder is equipped with the RailCom function. Maximum motor current: 0.8 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of the Lenz GmbH, Gießen. This sound decoder is equipped with a pre-installed Zimo sound (sound collection). You will find an extensive list of questions/answers that are frequently posed to us in Chapter 5 of this Zimo manual .

Suitable for Gauge H0e, TT and N. The decoder is equipped with the RailCom function. Maximum motor current: 0.8 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

Decoder with wires and 8-pole plug. Suitable for Gauge H0e, TT and N. The decoder is equipped with the RailCom function. Maximum motor current: 0.8 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

Suitable for Gauge H0 and TT. The decoder is equipped with the RailCom function. Maximum motor current: 1.0 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

Suitable for Gauge H0 and TT. Decoder is equipped with the RailCom function. Maximum motor current: 0.8 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. This sound decoder is equipped with a pre-installed Zimo sound (sound collection). You will find an extensive list of questions/answers that are frequently posed to us in Chapter 5 of this Zimo manual .

Suitable for Gauge H0. The decoder is equipped with the RailCom function. Maximum motor current: 1.2 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. Answers to possible questions can be found in this Zimo manual

Suitable for Gauge H0. The decoder is equipped with the RailCom function. Maximum motor current: 1.2 A. For further technical data see data sheet. (Downloads) RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen. This sound decoder is equipped with a pre-installed Zimo sound (sound collection). You will find an extensive list of questions/answers that are frequently posed to us in Chapter 5 of this Zimo manual .

Model For quickly programming the märklin LokDecoder mLD3 and mSD3. Easy connection to your PC/laptop via USB. You need the märklin Decoder Tool software, which you can conveniently download from our homepage. The software helps you to transfer existing or self-recorded sounds easily and quickly. You can now also make all the other settings, such as maximum speed, braking behaviour, etc., very easily. Highlights Quick programming of the new märklin decoders m LD3 and m SD3

Model For quickly programming the märklin LokDecoder mLD3 and mSD3. Easy connection to your PC/laptop by USB. You need the märklin Decoder Tool software, which you can conveniently download from our website. https://www.maerklin.de/de/service/downloads/neu-nachruest-decoder-mld3msd3/mdecodertool-mdt3 The software helps you to transfer existing sounds or sounds you have recorded yourself quickly and in an easily understandable way. You can now also make all of the other settings very easily, such as maximum speed, braking characteristics, function mapping, etc. IMPORTANT! The factory-fitted decoders in Märklin, Trix and LGB items cannot be edited with this programmer! The programmer works exclusively with the 6097x and 6098x retrofit decoders. Highlights Quick programming of the new märklin decoders m LD3 SD3

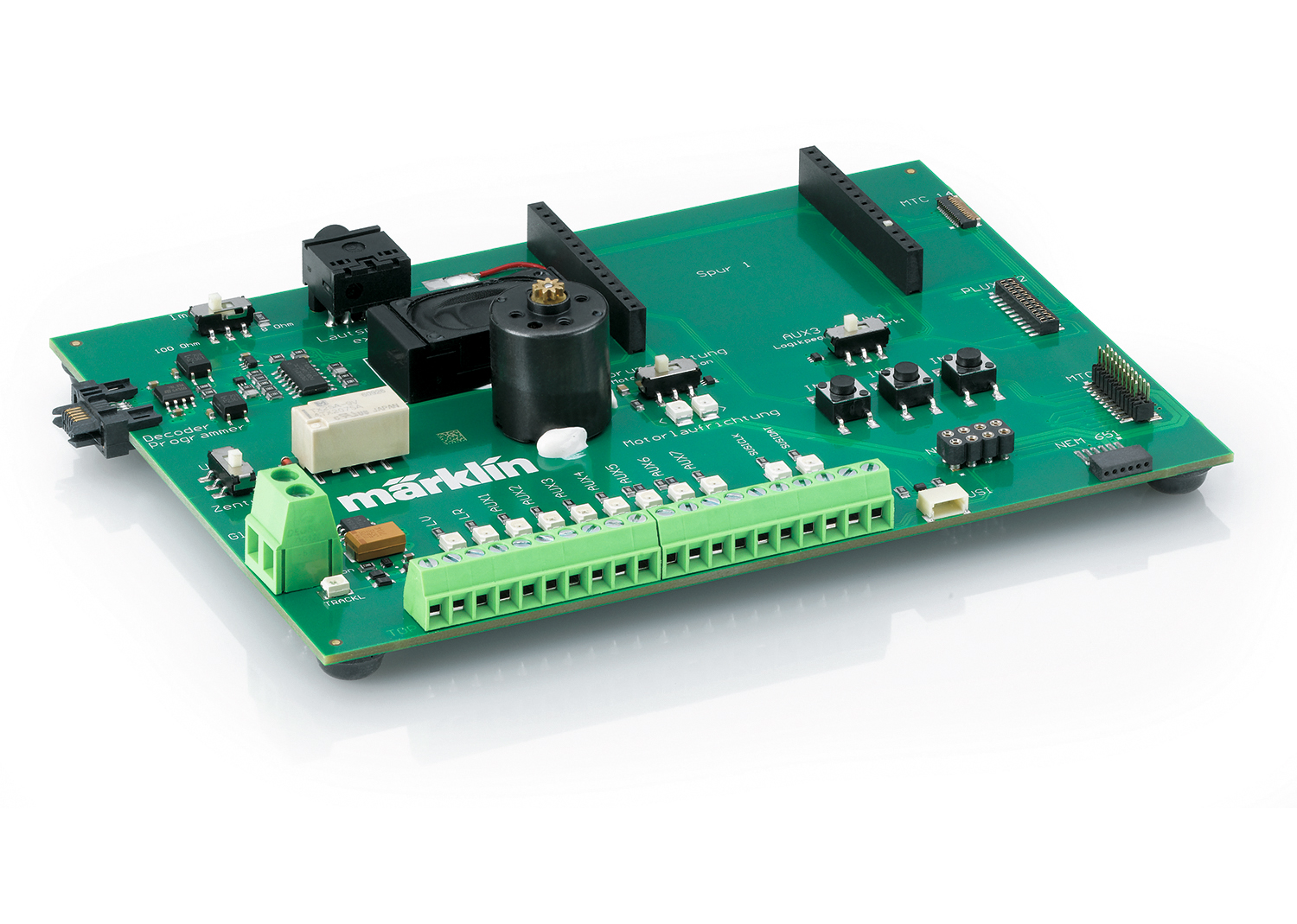

Model For quickly testing the new märklin LokDecoder3 and märklin SoundDecoder3 as well as all other decoders that use the following interfaces: NEM 651, NEM 652, MTC14, MTC21 and PluX22. Other decoders, such as those for Gauge 1, LGB or with single wires, are to be connected by means of screw terminals. The other equipment includes:– LED monitoring for the headlights, for Aux 1-6, track input, Aux 3 and 4 amplified and unamplified– Track connection for the digital central unit– Speaker– Motor– Separate connection terminals for another motor– Direct connection to the märklin Decoder Programmer Highlights Easy testing of decoder functions

You can find more information and a note on availability for this Märklin item in the product database at www.maerklin.de
